Disassembly And Reassembly: Disassembly

  1. Remove the drive mode switch.

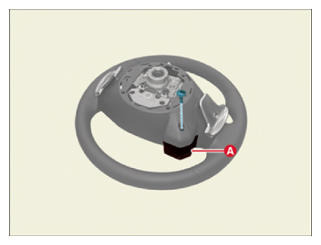

    1. Separate the drive mode switch (A) after removing the screw.
      G15788824Courtesy of KIA MOTORS AMERICA, INC.

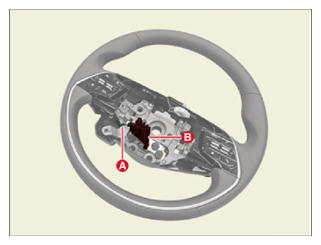

    2. Disconnect the connectors (A), and then remove the drive mode switch (B).
    G15788825Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the paddle shifter switches.

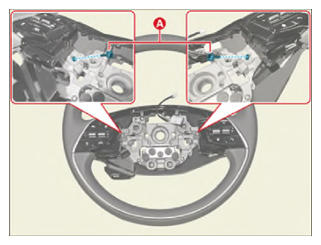

    1. Remove the paddle shifter switch screws (A).
      G15788826Courtesy of KIA MOTORS AMERICA, INC.

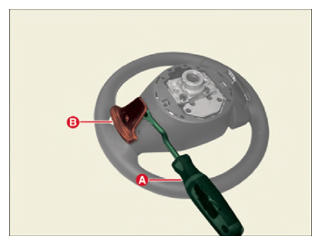

    2. Separate the paddle shifter (B) using the remover (A) or a suitable tool.
      G15788827Courtesy of KIA MOTORS AMERICA, INC.

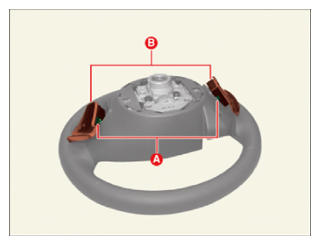

    3. Remove the paddle shifter switches (B) by disconnecting the connectors (A).
    G15788828Courtesy of KIA MOTORS AMERICA, INC.

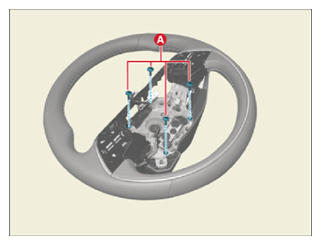

  3. Remove the steering wheel lower cover screws (A).
    G15788829Courtesy of KIA MOTORS AMERICA, INC.

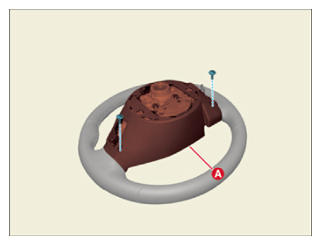

  4. Remove the steering wheel lower cover (A) after removing the screws.
    G15788830Courtesy of KIA MOTORS AMERICA, INC.

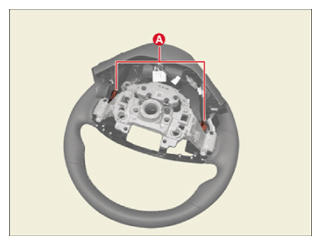

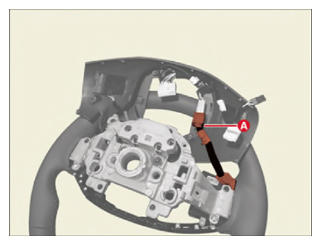

  5. Remove the steering wheel lower cover and extension wire by disconnecting the connectors (A).
    G15788831Courtesy of KIA MOTORS AMERICA, INC.
    G15788832Courtesy of KIA MOTORS AMERICA, INC.

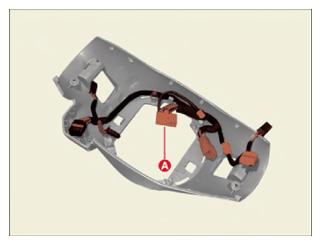

  6. Steering wheel extension wire (A).
    G15788833Courtesy of KIA MOTORS AMERICA, INC.

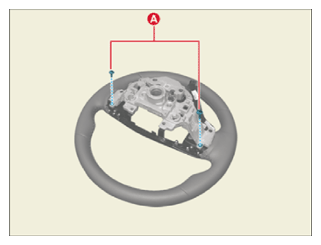

  7. Remove the remote control switch and bezel screws (A).
    G15788834Courtesy of KIA MOTORS AMERICA, INC.

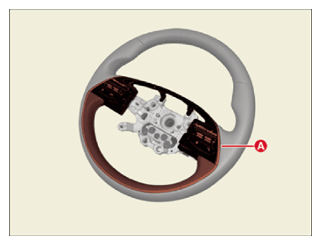

  8. Remove the remote control switch and bezel (A).
    G15788835Courtesy of KIA MOTORS AMERICA, INC.

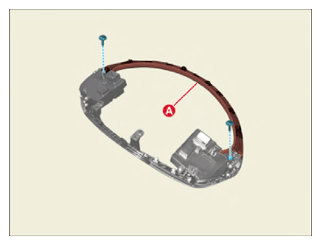

  9. Remove the steering wheel inner bezel (A) after removing the screws.
    G15788836Courtesy of KIA MOTORS AMERICA, INC.

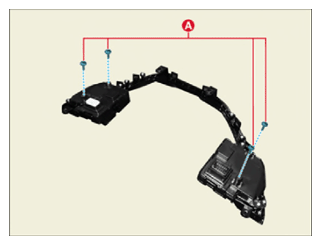

  10. Remove the remote control switch screws (A).
    G15788837Courtesy of KIA MOTORS AMERICA, INC.

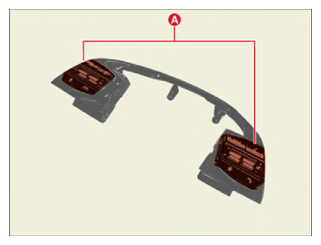

  11. Remove the remote control switches (A).
    G15788838Courtesy of KIA MOTORS AMERICA, INC.

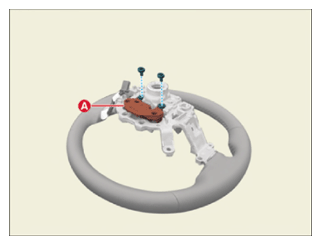

  12. Remove the dynamic damper (A) after removing the screws.

    Tightening torque

    5.9 - 7.6 N.m (0.60 - 0.78 kgf.m, 4.3 - 5.6 lb.ft)

    G15788839Courtesy of KIA MOTORS AMERICA, INC.
