Home >> Kia >> 2023 >> Niro Plug-In Hybrid EX >> Repair and Diagnosis >> Steering >> Steering Control Systems >> Motor Driven Power Steering (MDPS) System (PHEV) >> Universal Joint Assembly >> Components And Components Location >> Component

Components And Components Location: Component

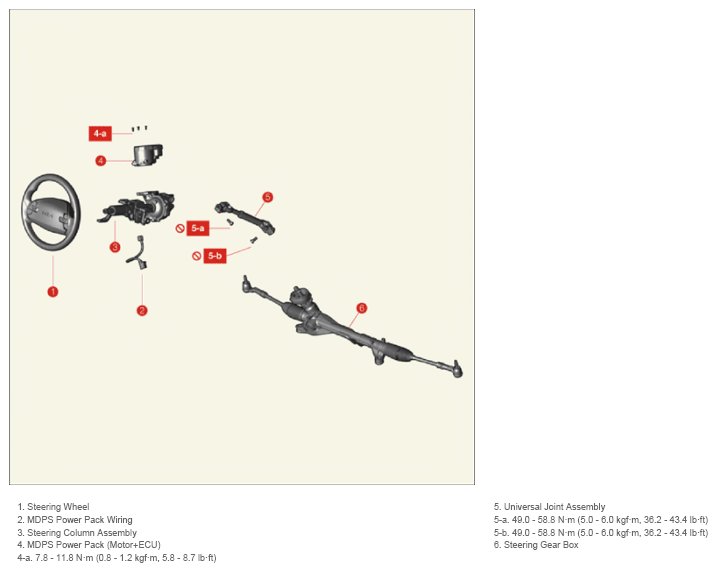

Fig 1: Universal Joint Assembly Components Location With Torque Specifications

G15788879

Courtesy of KIA MOTORS AMERICA, INC.
