Dust cap

  1. Replace with a new dust cap.
    NOTE:

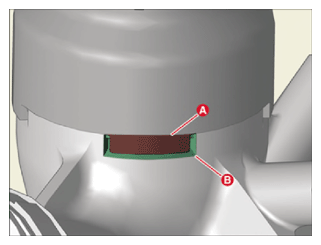

    • Ensure that the dust cap (A) fits into the steering gear box grooves (B) when assembling. [4 Points]
      G15788920Courtesy of KIA MOTORS AMERICA, INC.
    • Clean the pinion shaft before reassembling.
  2. Check the alignment.

    (Refer to Suspension System -  Alignment - "REPAIR PROCEDURES ")
