Disassembly And Reassembly: Disassembly: Notes

NOTE:
  • Do not disassemble the steering gear box.
  • When replacing internal parts related to noise/cleanliness/functions other than simple fastening parts, the performance of part can not guarantee.

[Replaceable Parts]

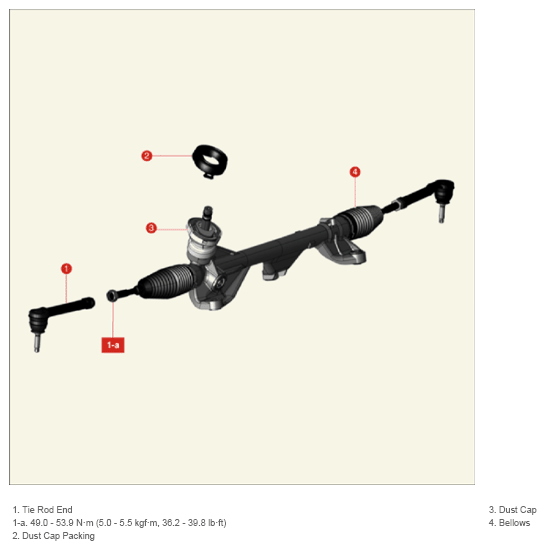

Fig 1: Steering Gear Box Components Location With Torque Specifications
G15788911Courtesy of KIA MOTORS AMERICA, INC.
