Circuit Inspection: Notes

WARNING: This page is about a different car, the 2024 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

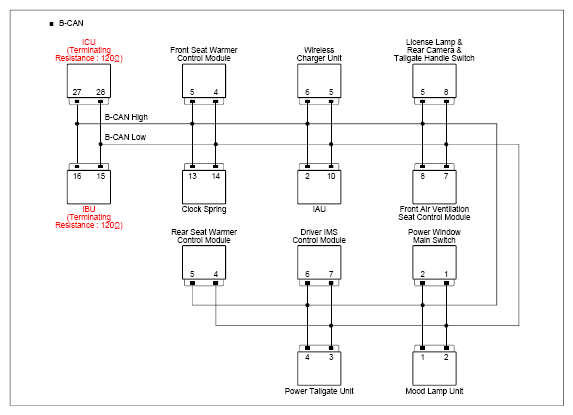

G15778596Courtesy of KIA MOTORS AMERICA, INC.

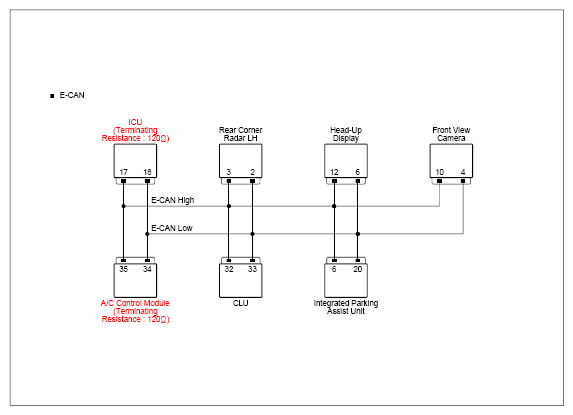

G15778597Courtesy of KIA MOTORS AMERICA, INC.
