Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 5

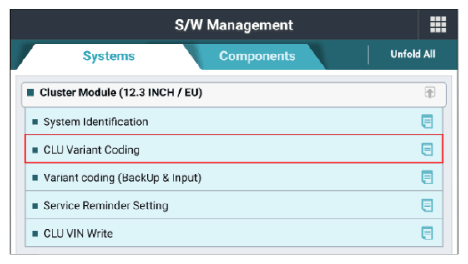

G15778566Courtesy of KIA MOTORS AMERICA, INC.

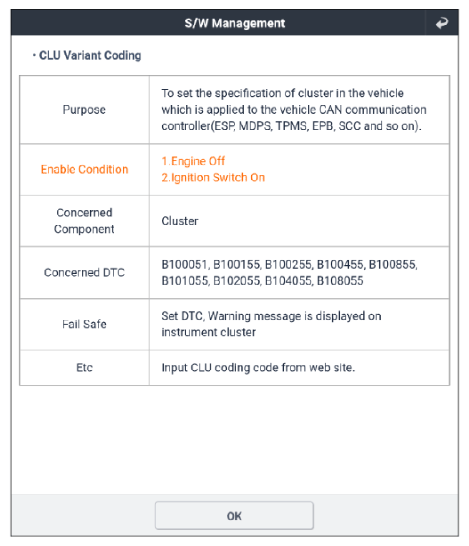

G15778567Courtesy of KIA MOTORS AMERICA, INC.

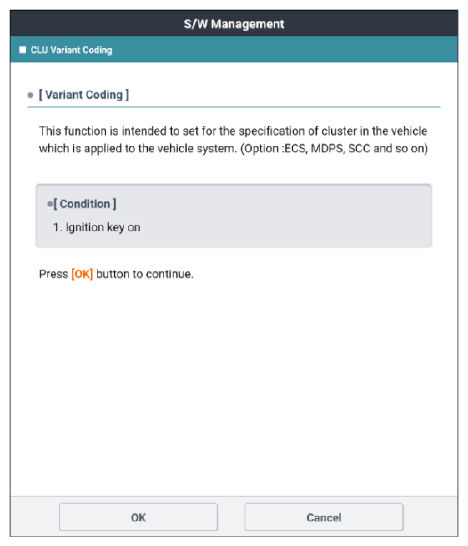

G15778568Courtesy of KIA MOTORS AMERICA, INC.

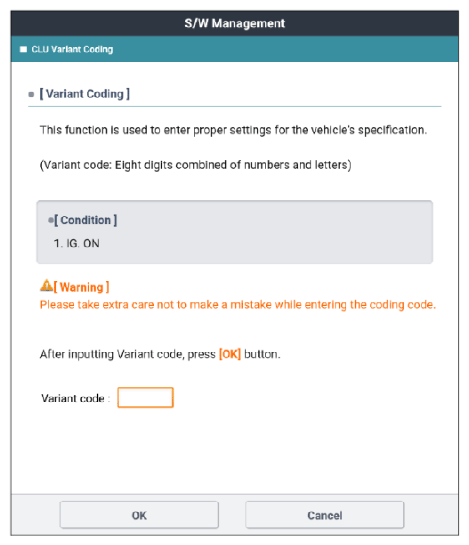

G15778569Courtesy of KIA MOTORS AMERICA, INC.

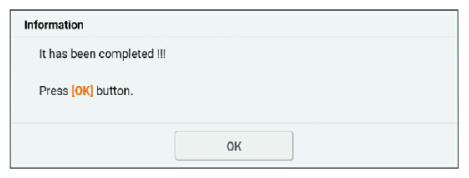

G15778570Courtesy of KIA MOTORS AMERICA, INC.
