Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 5

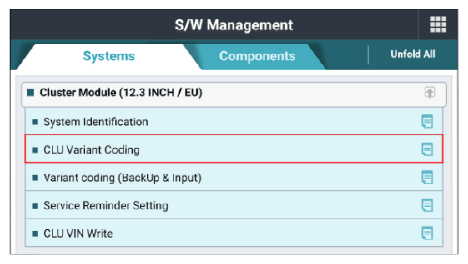

G15778478Courtesy of KIA MOTORS AMERICA, INC.

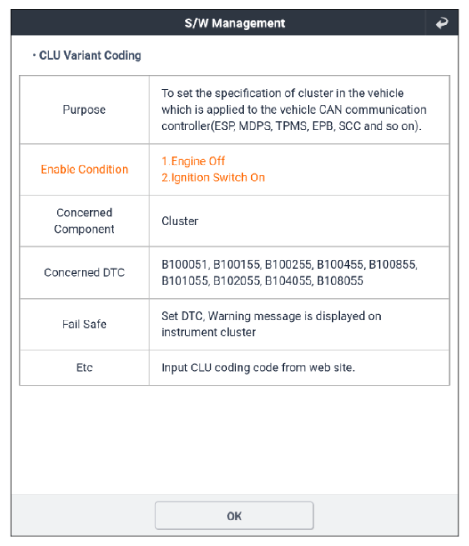

G15778479Courtesy of KIA MOTORS AMERICA, INC.

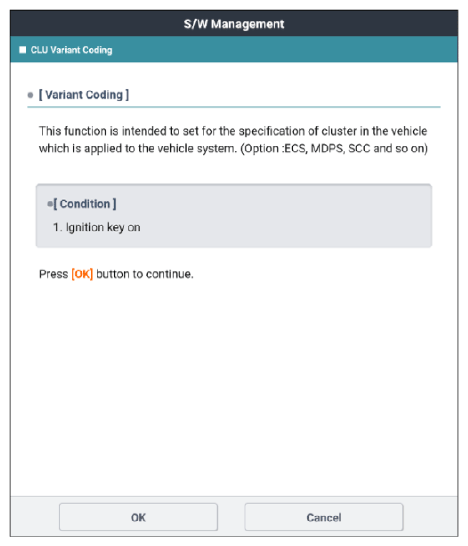

G15778480Courtesy of KIA MOTORS AMERICA, INC.

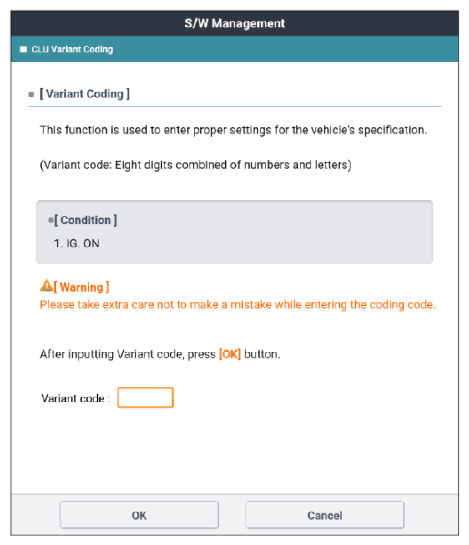

G15778481Courtesy of KIA MOTORS AMERICA, INC.

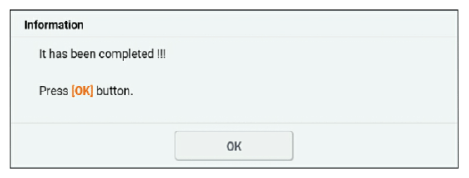

G15778482Courtesy of KIA MOTORS AMERICA, INC.
