Home >> Kia >> 2023 >> Niro EX >> Repair and Diagnosis >> External Pages >> Different car >> Section 92 (Cluster Module Diagnosis (HEV)) >> DTC B1003-55: ABS Present Error - Coding Code Error >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

WARNING: This page is about a different car, the 2024 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

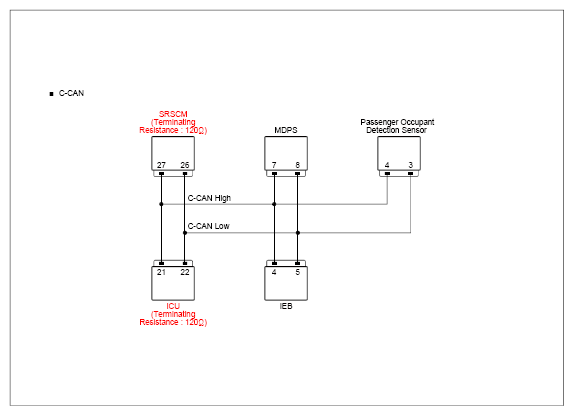

G15778420Courtesy of KIA MOTORS AMERICA, INC.

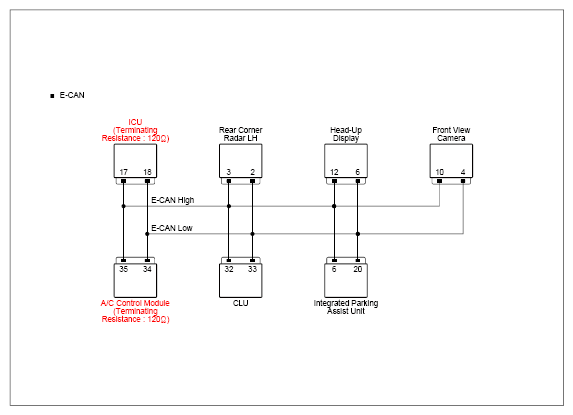

G15778421Courtesy of KIA MOTORS AMERICA, INC.
