Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 5

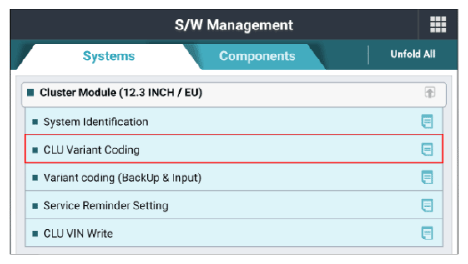

G15778434Courtesy of KIA MOTORS AMERICA, INC.

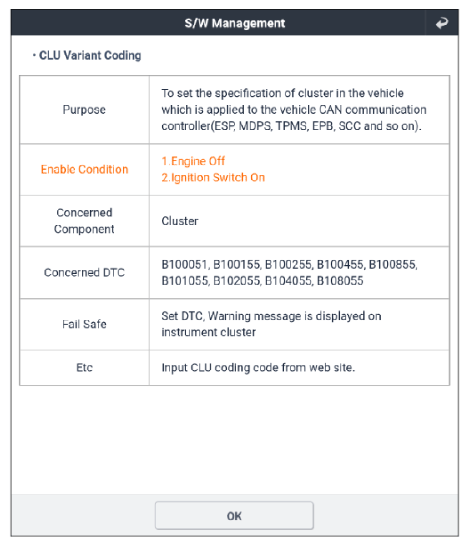

G15778435Courtesy of KIA MOTORS AMERICA, INC.

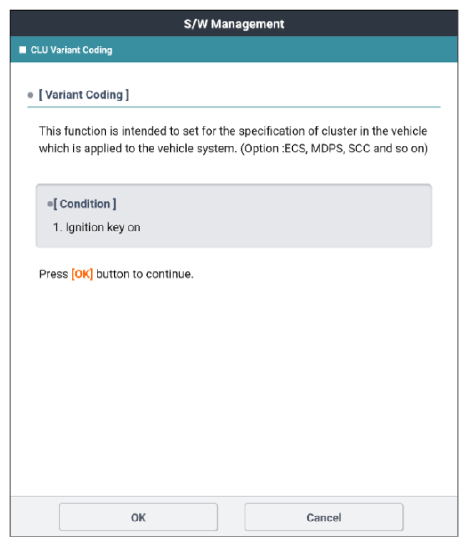

G15778436Courtesy of KIA MOTORS AMERICA, INC.

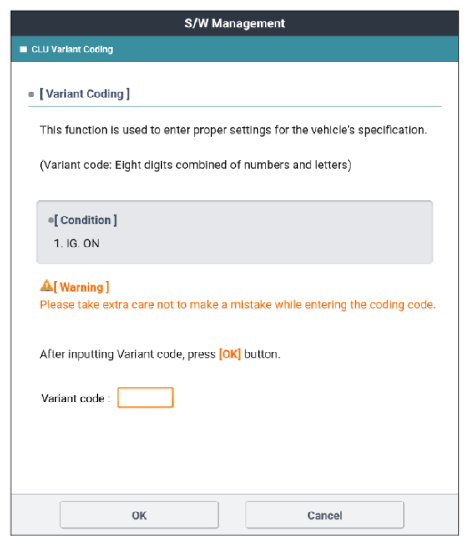

G15778437Courtesy of KIA MOTORS AMERICA, INC.

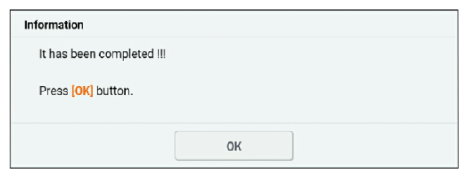

G15778438Courtesy of KIA MOTORS AMERICA, INC.
