Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 5

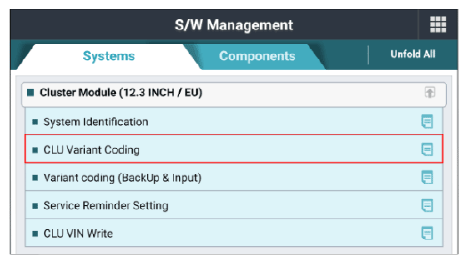

G15778390Courtesy of KIA MOTORS AMERICA, INC.

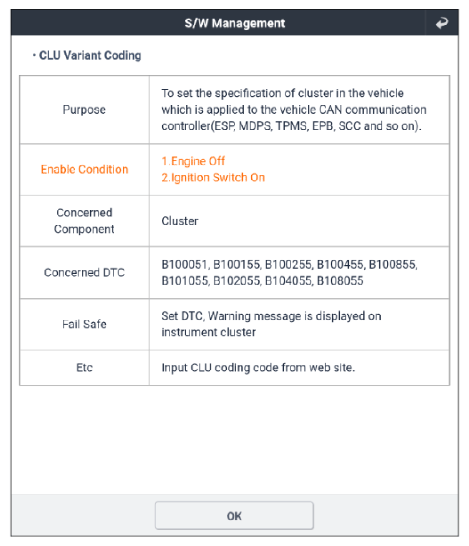

G15778391Courtesy of KIA MOTORS AMERICA, INC.

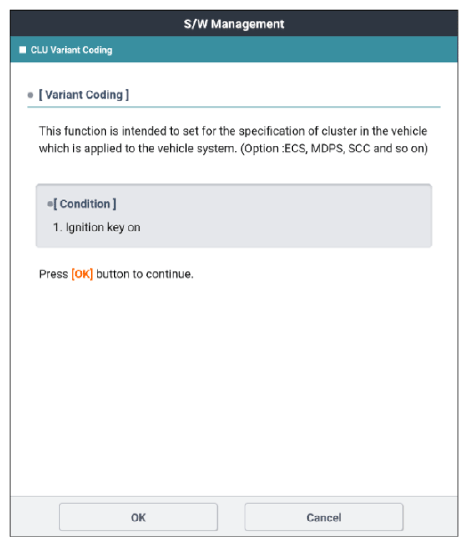

G15778392Courtesy of KIA MOTORS AMERICA, INC.

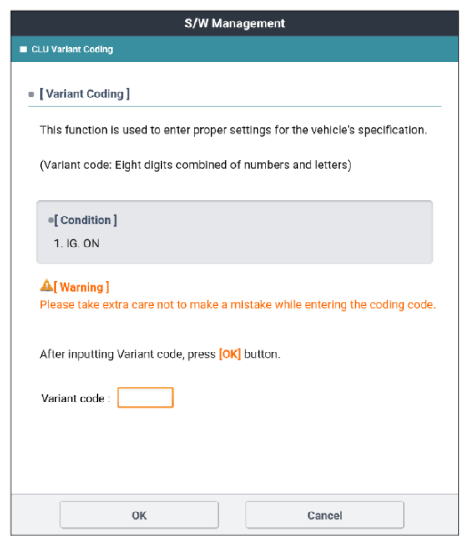

G15778393Courtesy of KIA MOTORS AMERICA, INC.

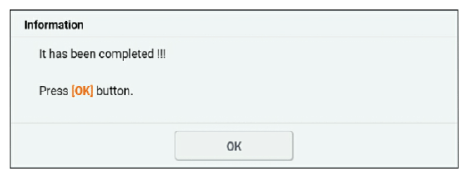

G15778394Courtesy of KIA MOTORS AMERICA, INC.
