Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 5

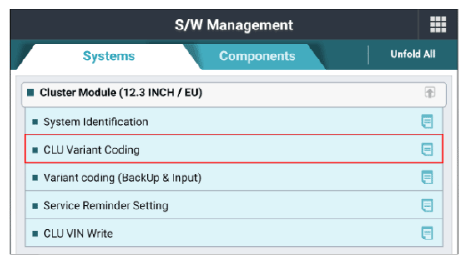

G15778346Courtesy of KIA MOTORS AMERICA, INC.

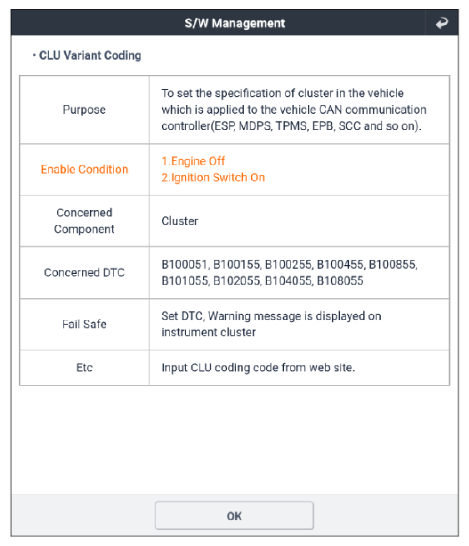

G15778347Courtesy of KIA MOTORS AMERICA, INC.

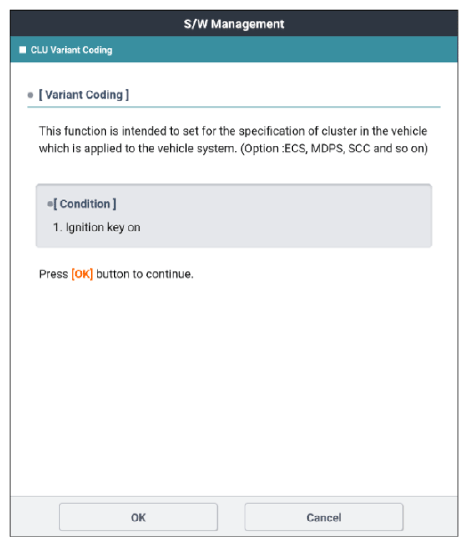

G15778348Courtesy of KIA MOTORS AMERICA, INC.

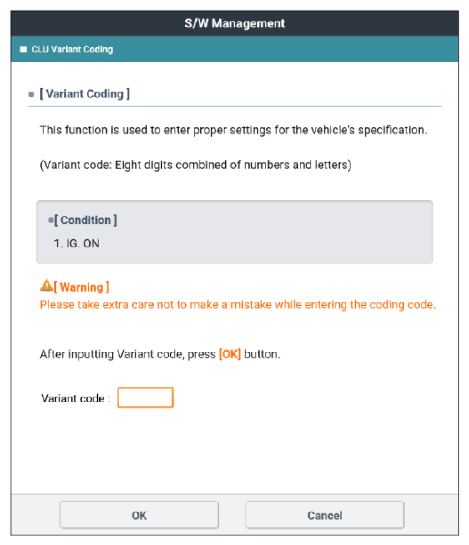

G15778349Courtesy of KIA MOTORS AMERICA, INC.

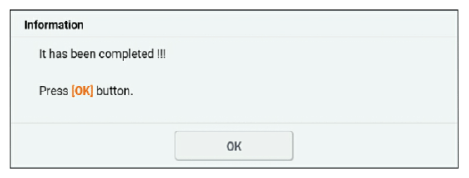

G15778350Courtesy of KIA MOTORS AMERICA, INC.
