Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 5

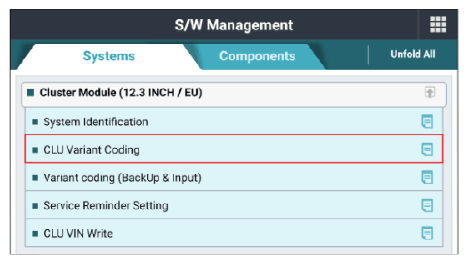

G15778302Courtesy of KIA MOTORS AMERICA, INC.

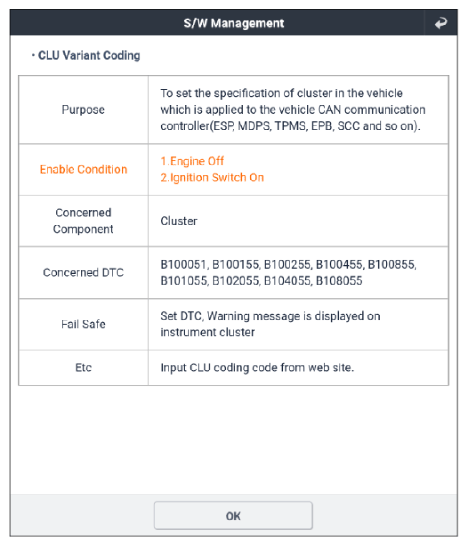

G15778303Courtesy of KIA MOTORS AMERICA, INC.

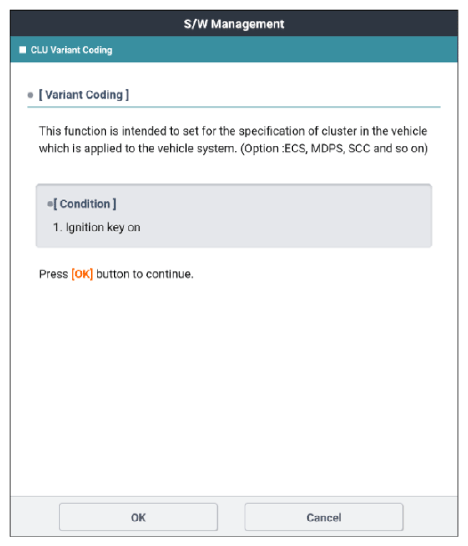

G15778304Courtesy of KIA MOTORS AMERICA, INC.

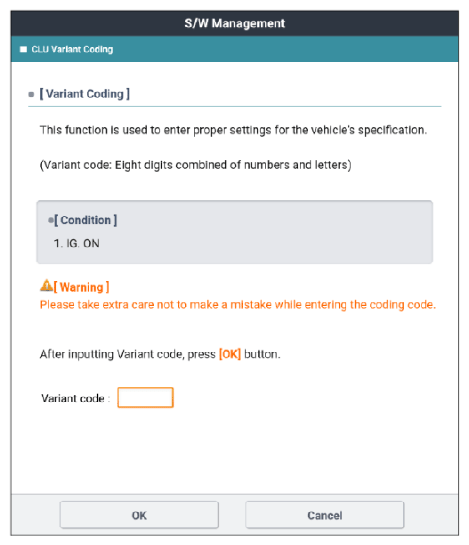

G15778305Courtesy of KIA MOTORS AMERICA, INC.

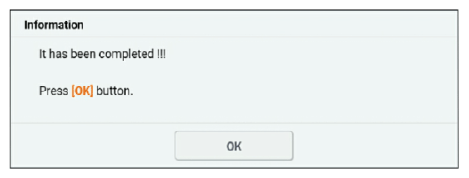

G15778306Courtesy of KIA MOTORS AMERICA, INC.
