Driver Airbag (DAB) Module & Clock Spring: Removal: Notes

WARNING: This page is about a different car, the 2024 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ". If not, it may cause serious accidents due to electric shock or short circuit.
When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure

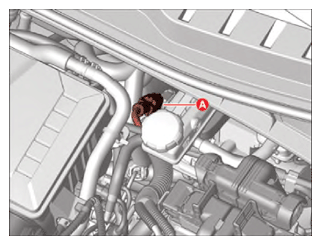

Turn the IG OFF and disconnect the low voltage (12 V) lithium battery (+) connector (A).
NOTE: After disconnecting the connector, wait at least 3 minutes and 30 seconds.

Information

Disconnect the connector in the engine room to shut the 12 V power off since the auxiliary battery (12 V) is integrated into the high voltage battery.

Courtesy of KIA MOTORS AMERICA, INC.

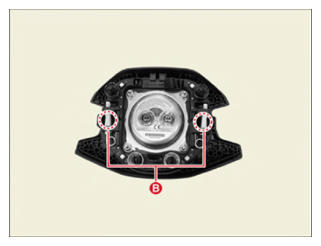

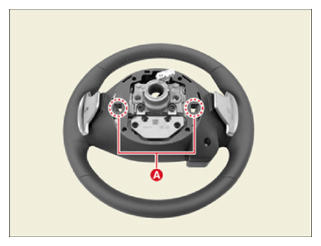

Remove the driver airbag module by pressing the fastening pin (B) using the service hole (A) on the back of the steering wheel.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

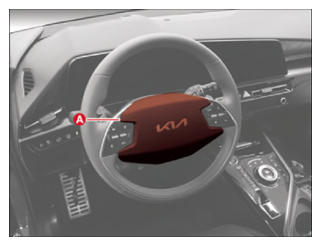

Remove the driver airbag module (A).

Courtesy of KIA MOTORS AMERICA, INC.

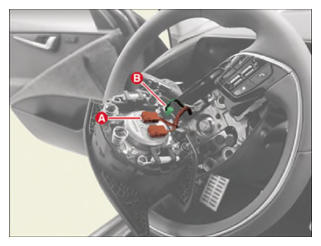

Disconnect the driver airbag module connector (A) and the horn connector (B).

Courtesy of KIA MOTORS AMERICA, INC.
