Clock Spring: Removal
WARNING: This page is about a different car, the 2024 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
- When working on the high voltage system or related components, be sure to observe and be aware of the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ". If not, it may cause serious accidents due to electric shock or short circuit.
- When working on the high voltage system, make sure to check the PERSONAL PROTECTIVE EQUIPMENT (PPE) and HIGH VOLTAGE SHUT-OFF PROCEDURES .

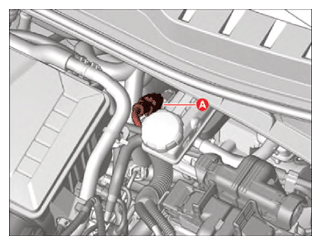

- Turn the IG OFF and disconnect the low voltage (12 V) lithium battery (+) connector (A).NOTE: After disconnecting the connector, wait at least 3 minutes and 30 seconds.
Information
Disconnect the connector in the engine room to shut the 12 V power off since the auxiliary battery (12 V) is integrated into the high voltage battery.
- Remove the steering wheel.
(Refer to Steering System - "REMOVAL & INSTALLATION ")
- Remove the steering column shroud lower panel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")

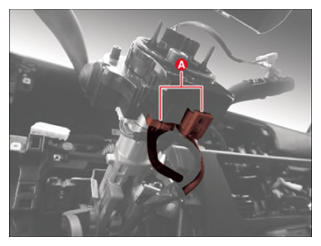

- Disconnect the clock spring connectors (A).

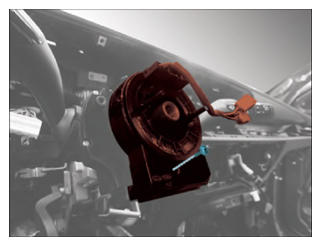

- Remove the clock spring (A) by releasing the fixing hook after removing the screw.
Information

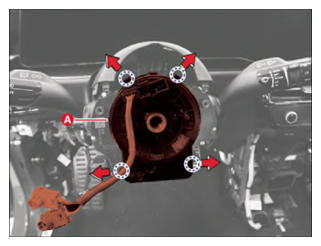

Clip position:
