Deployed Inside The Vehicle
WARNING: This page is about a different car, the 2024 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

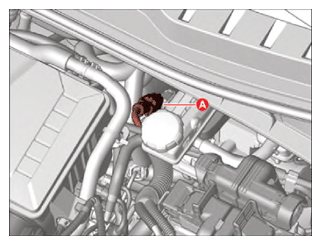

- Turn the IG OFF and disconnect the low voltage (12 V) lithium battery (+) connector (A).NOTE: After disconnecting the connector, wait at least 3 minutes and 30 seconds.
Information
Disconnect the connector in the engine room to shut the 12 V power off since the auxiliary battery (12 V) is integrated into the high voltage battery.
- Make sure the airbag module is securely installed.
- Prepare to deploy the airbag module as follows.
- Disconnect the 2-pin connector of the airbag to be deployed inside the vehicle.
- Connect the deployment adapter to the airbag and BPT.
- For the Driver Airbag (DAB), disconnect the 2-pin connector, connect the deployment adapter, and then reinstall it on the steering wheel.
- Workers should be at least 7 meters away from the vehicle.

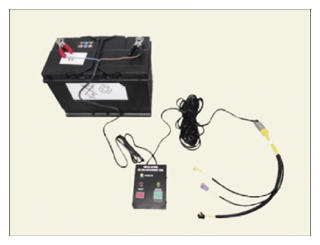

- Connect the Special Service Tool (0957A - 34100A) to the deployment adapter and then connect it to the external battery.
- Battery (12 V)
- The Special Service Tool for deployment (0957A - 34100A)
- Deployment adapter
- Driver Airbag (DAB), Passenger Airbag (PAB)
- Curtain Airbag (CAB), seat Belt Pretensioner (BPT)
- Side Airbag (SAB) module

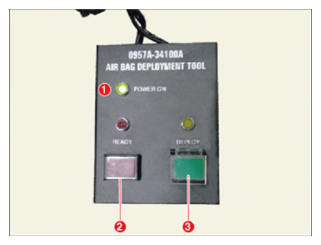

- Activate the switch of the airbag deployment tool to deploy the airbag.
- When connecting to an external battery normally, POWER ON (1) is turned on.
- If READY (2) button illuminates while pressing READY (2) button, press DEPLOY (3) button to deploy the airbag.
Information
When the airbag is deployed, loud noise is generated, visually confirmed, and after rapid inflation, it contracts slowly.
- Place the deployed airbag in a sturdy plastic bag and sealed securely, then dispose it.
