Components And Components Location: Components

WARNING: This page is about a different car, the 2024 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

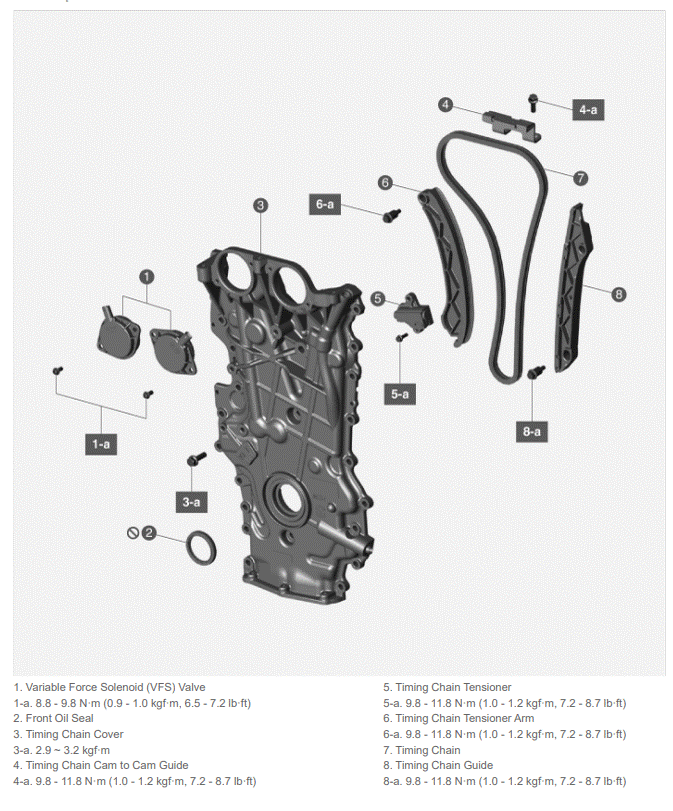

Fig 1: Timing System Components Location With Torque Specification
G15766479Courtesy of KIA MOTORS AMERICA, INC.
