Integrated Thermal Management Module (ITM) Side

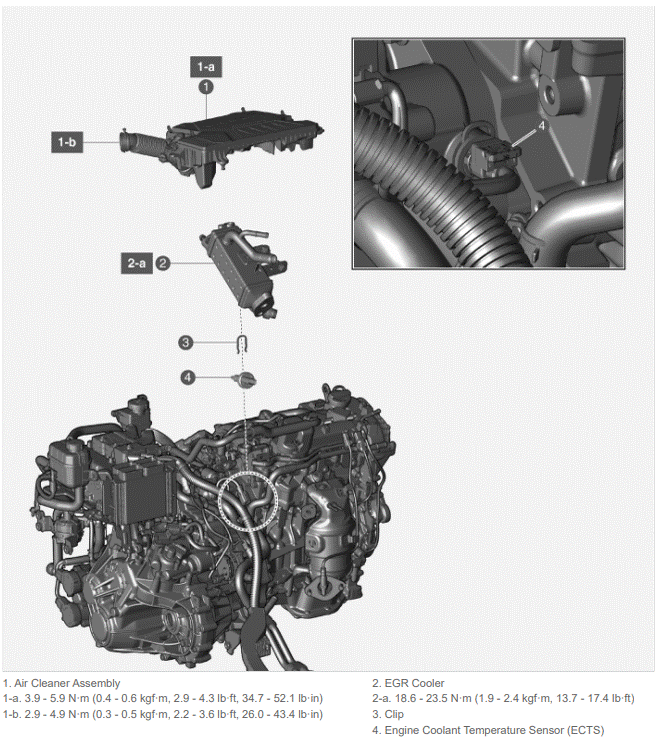

Fig 1: Engine Coolant Temperature Sensor Components Location With Torque Specification

G15767086

Courtesy of KIA MOTORS AMERICA, INC.
