Disassembly And Reassembly: Disassembly

  1. Remove the drive mode switch.

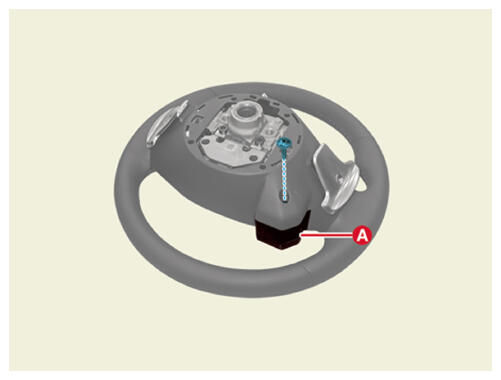

    1. Separate the drive mode switch (A) after removing the screw.
      G15896429Courtesy of KIA MOTORS AMERICA, INC.

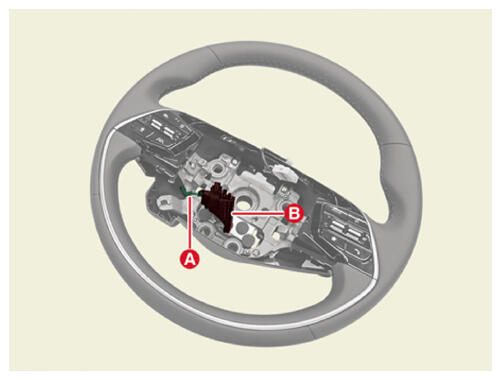

    2. Disconnect the connectors (A), and then remove the drive mode switch (B).
    G15896430Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the paddle shifter switches.

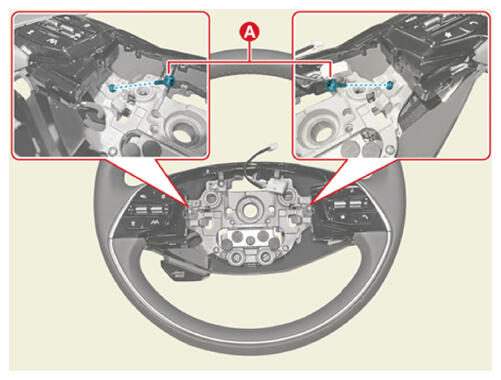

    1. Remove the paddle shifter switch screws (A).
      G15896431Courtesy of KIA MOTORS AMERICA, INC.

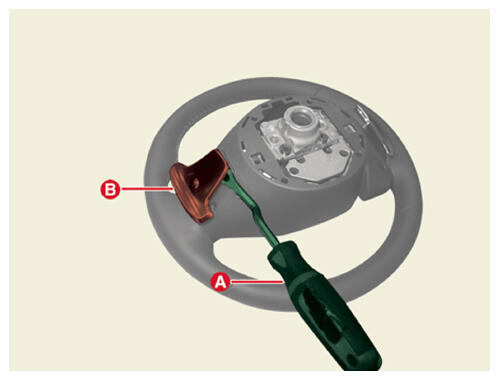

    2. Separate the paddle shifter (B) using a trim remover (A) or a suitable tool.
      G15896432Courtesy of KIA MOTORS AMERICA, INC.

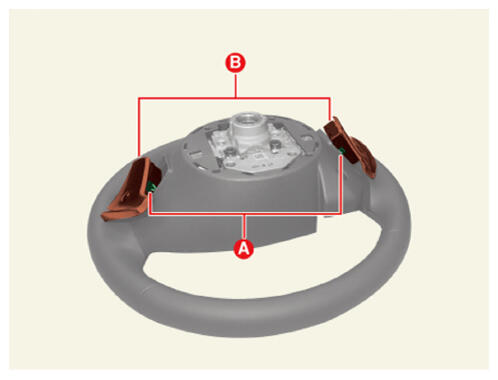

    3. Remove the paddle shifter switches (B) by disconnecting the connectors (A).
    G15896433Courtesy of KIA MOTORS AMERICA, INC.

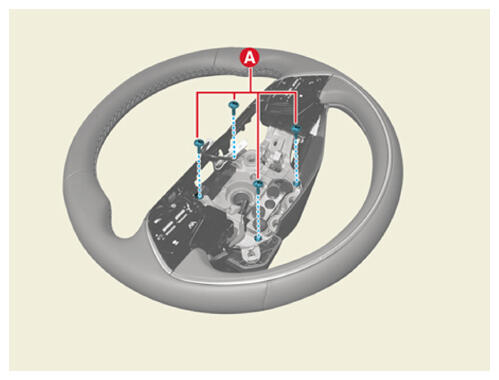

  3. Remove the steering wheel lower cover screws (A).
    G15896434Courtesy of KIA MOTORS AMERICA, INC.

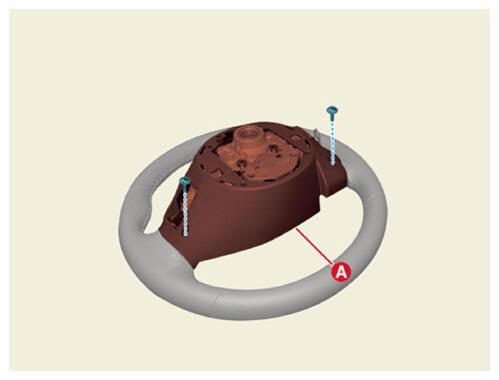

  4. Remove the steering wheel lower cover (A) after removing the screws.
    G15896435Courtesy of KIA MOTORS AMERICA, INC.

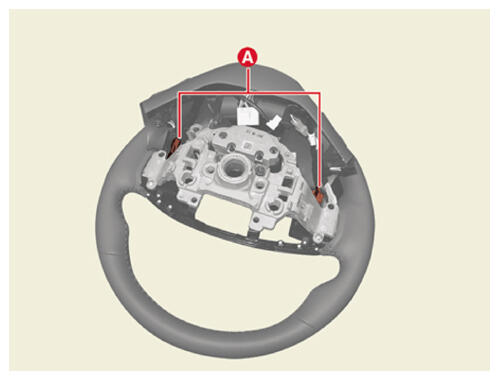

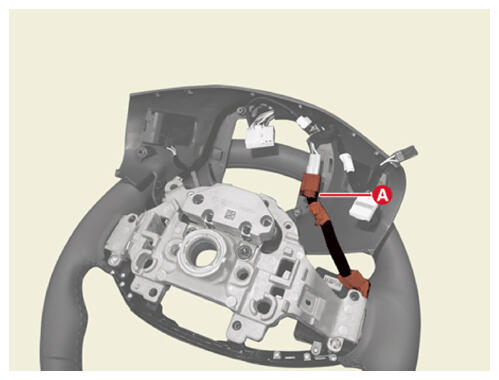

  5. Remove the steering wheel lower cover and extension wire by disconnecting the connectors (A).
    G15896436Courtesy of KIA MOTORS AMERICA, INC.
    G15896437Courtesy of KIA MOTORS AMERICA, INC.

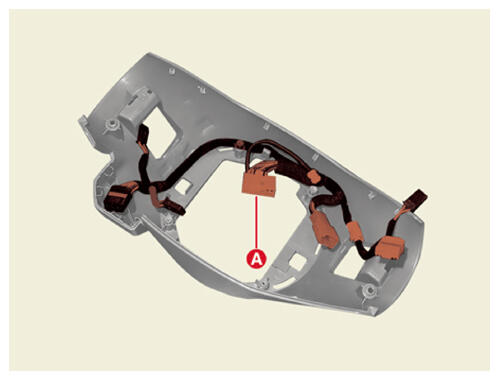

  6. Steering wheel extension wire (A).
    G15896438Courtesy of KIA MOTORS AMERICA, INC.

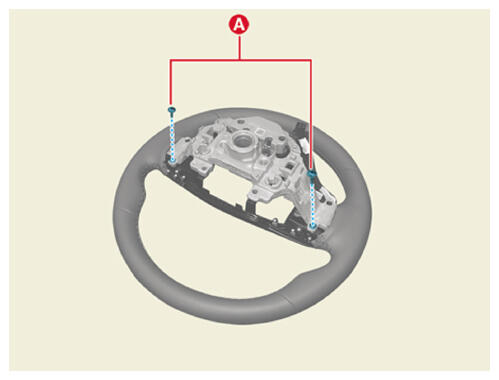

  7. Remove the remote control switch and bezel screws (A).
    G15896439Courtesy of KIA MOTORS AMERICA, INC.

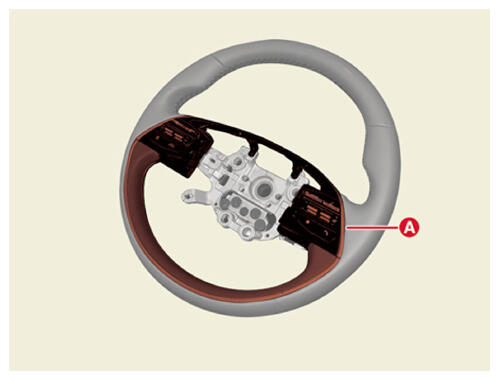

  8. Remove the remote control switch and bezel (A).
    G15896440Courtesy of KIA MOTORS AMERICA, INC.

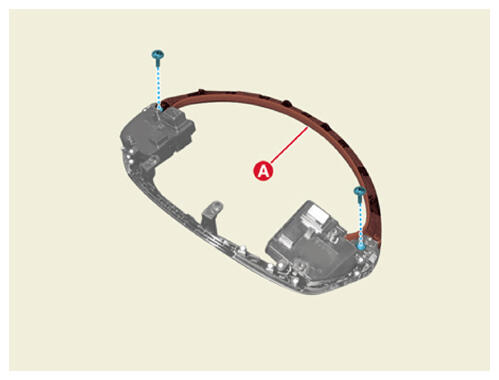

  9. Remove the steering wheel inner bezel (A) after removing the screws.
    G15896441Courtesy of KIA MOTORS AMERICA, INC.

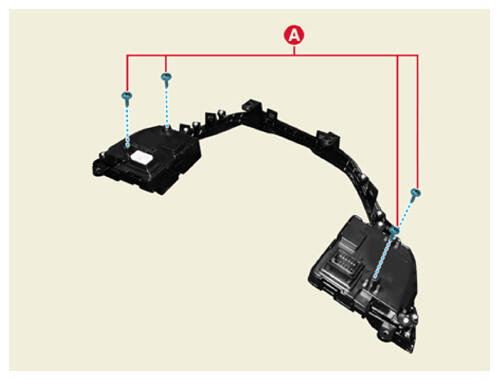

  10. Remove the remote control switch screws (A).
    G15896442Courtesy of KIA MOTORS AMERICA, INC.

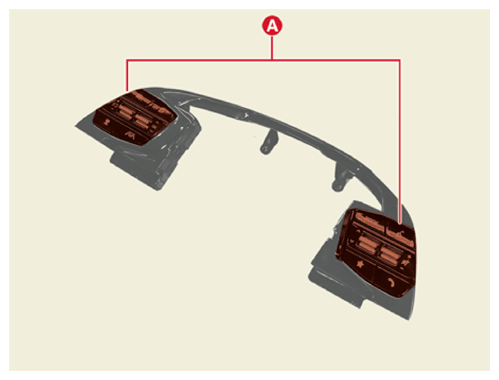

  11. Remove the remote control switches (A).
    G15896443Courtesy of KIA MOTORS AMERICA, INC.

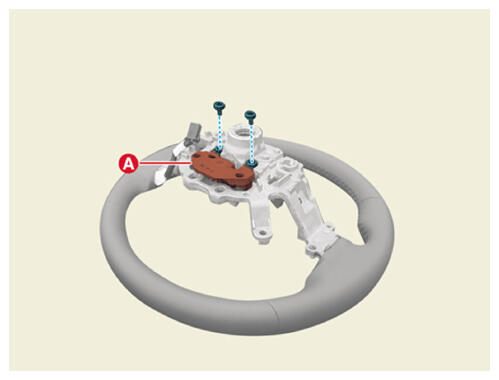

  12. Remove the dynamic damper (A) after removing the screws.

    Tightening torque:

    5.9 - 7.6 N.m (0.60 - 0.78 kgf.m, 4.3 - 5.6 lb.ft)

    G15896444Courtesy of KIA MOTORS AMERICA, INC.
