Components And Components Location: Component

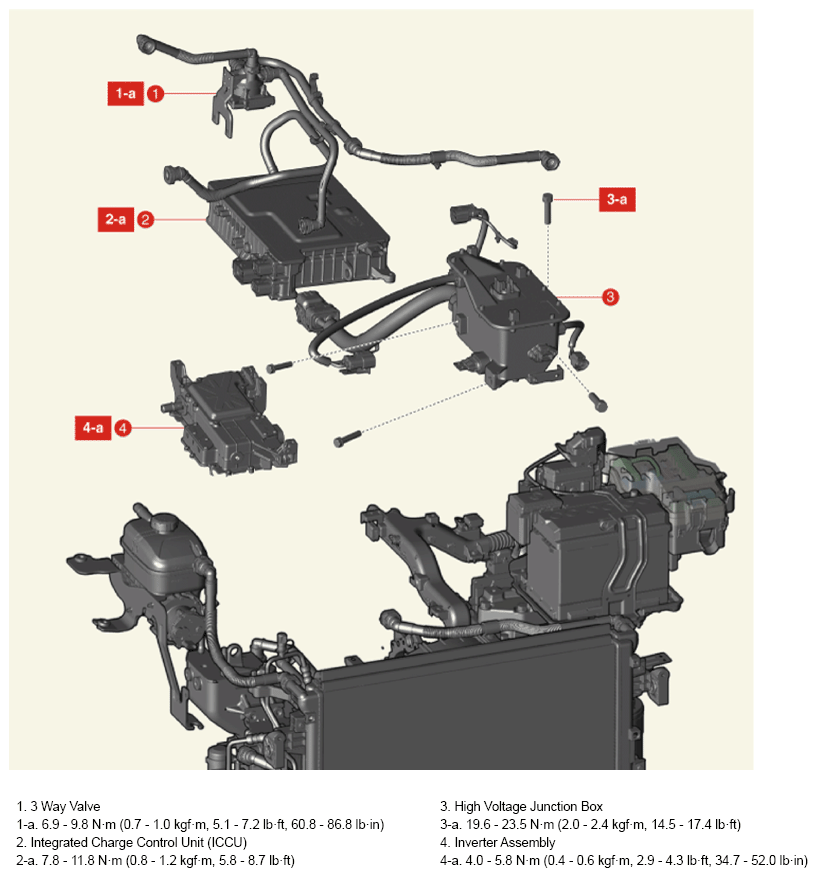

Fig 1: Inverter Components Location With Torque Specification

G15902614

Courtesy of KIA MOTORS AMERICA, INC.
