Description And Operation: Description

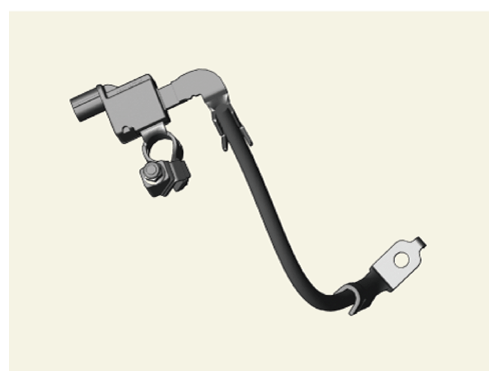

The battery sensor is installed in the auxiliary 12 V battery negative (-) terminal and detects the voltage change supplied to the actuator and detects the auxiliary 12 V battery output and input current.

Courtesy of KIA MOTORS AMERICA, INC.
