Home >> Kia >> 2023 >> Niro EV Wave >> Repair and Diagnosis >> Electrical >> Charging Systems >> Electric Power Conversion System >> Auxiliary 12 V Battery >> Components And Components Location >> Component

Components And Components Location: Component

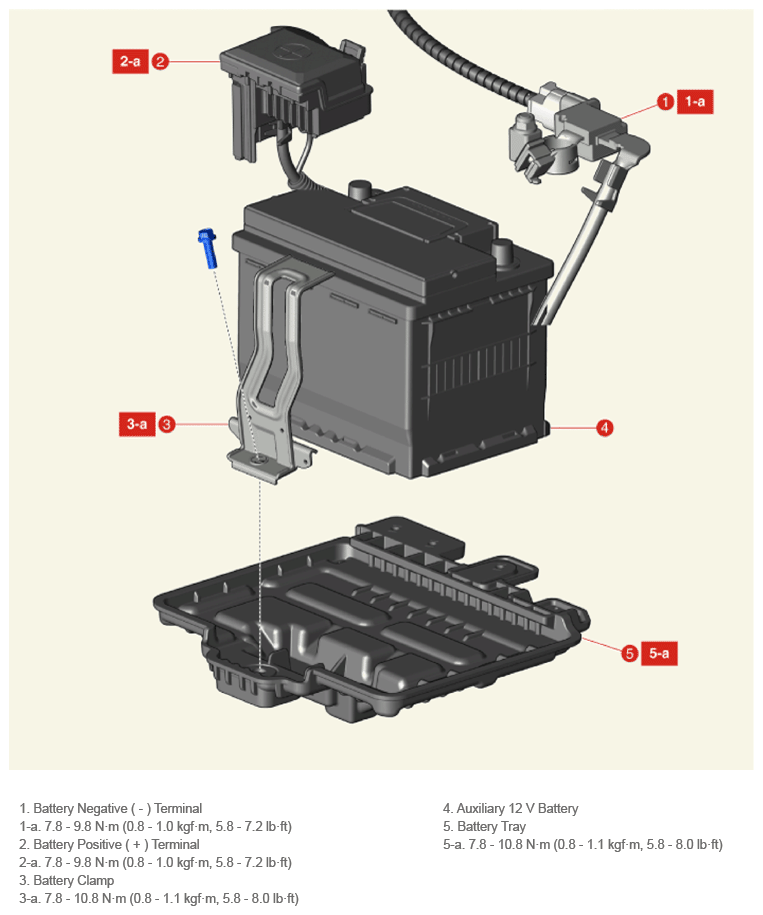

Fig 1: Auxiliary 12 V Battery Components Location With Torque Specification

G15902628

Courtesy of KIA MOTORS AMERICA, INC.
