Power Window Sub Switch

  1. Remove the passenger side front door trim.

    (Refer to Body - " FRONT DOOR TRIM  ")

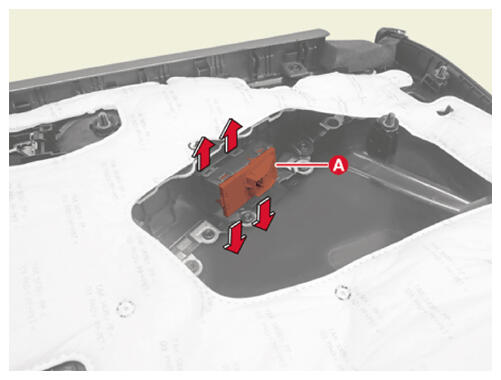

  2. Remove the power window sub switch (A) after pulling the hooks in the direction of arrow.
G15901953Courtesy of KIA MOTORS AMERICA, INC.

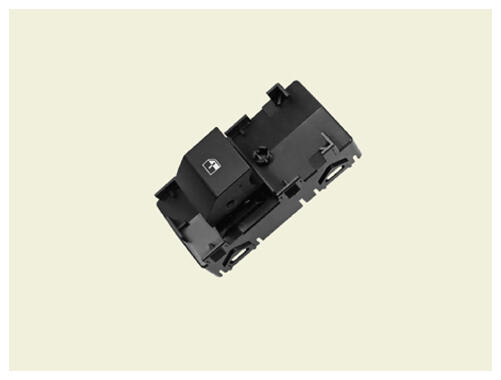

G15901954Courtesy of KIA MOTORS AMERICA, INC.
