Power Window Rear Switch

  1. Remove the rear door trim.

    (Refer to Body - " REAR DOOR TRIM  ")

  2. Remove the power window rear switch (A) after pulling the hooks in the direction of arrow.
G15901955Courtesy of KIA MOTORS AMERICA, INC.

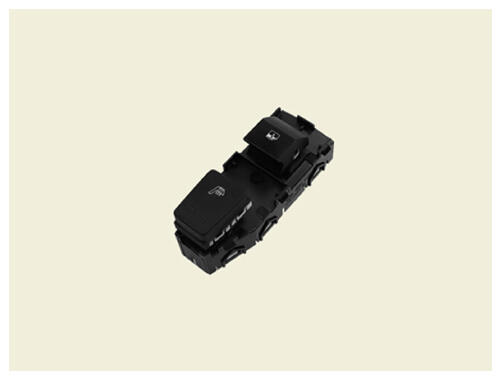

G15901956Courtesy of KIA MOTORS AMERICA, INC.
