Home >> Kia >> 2023 >> K5 GT >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Front Axle Assembly >> Components And Components Location >> Components

Components And Components Location: Components

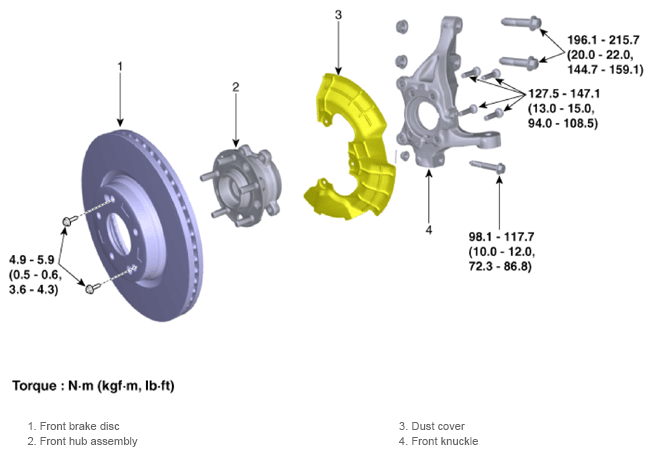

Fig 1: Front Hub And Front Axle Assembly Components Location With Torque Specification

G13834551

Courtesy of KIA MOTORS AMERICA, INC.
