Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Remove the front door trim.
(Refer to " Replacement ")

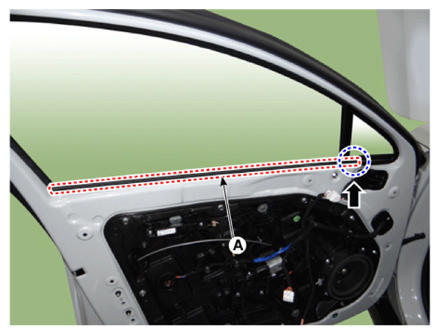

Remove the front door belt inside weatherstrip (A).

Courtesy of KIA MOTORS AMERICA, INC.

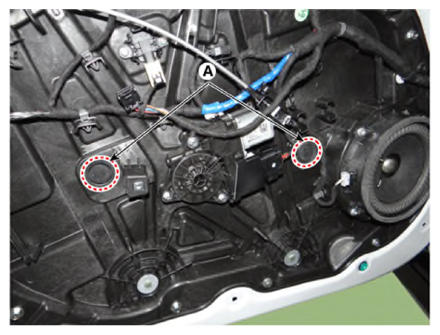

Separate the mounting plug hole (A) from the front door module.

Courtesy of KIA MOTORS AMERICA, INC.
Lower the glass by operating the power window switch until the glass mounting bolt is exposed in the plug hole.
CAUTION: Be careful not to drop the glass and/or scratch the glass surface.

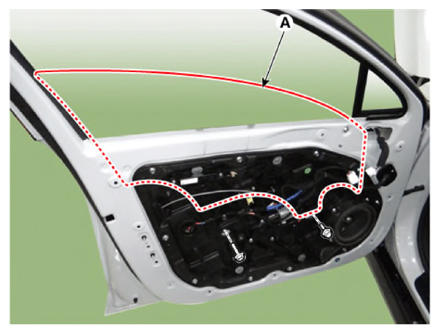

Loosen the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.
Tightening torque:

7.8 -11.8 N.m (0.8 -1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Roll the glass up and down to see if it moves freely.
- Adjust glass position as needed.
- Make sure the door lock and opens properly.
- Check the glass run channel for damage and replace the damaged channel.
