Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * Perform the "Variant Coding" and "Inspection/correction of the front-radar mounting angle (FCA/SCC)" on "Vehicle S/W Management", once SCC/FCA ECU is replaced. FRONT RADAR UNIT
* Do not select the [Stop mode] in "Inspection/correction of the front-radar mounting angle (FCA/SCC)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 13

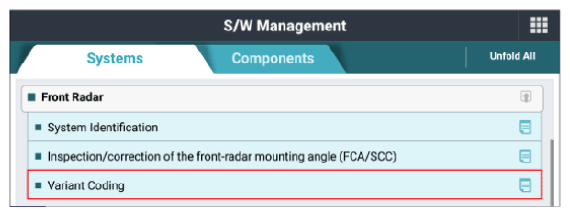

G13810579Courtesy of KIA MOTORS AMERICA, INC.

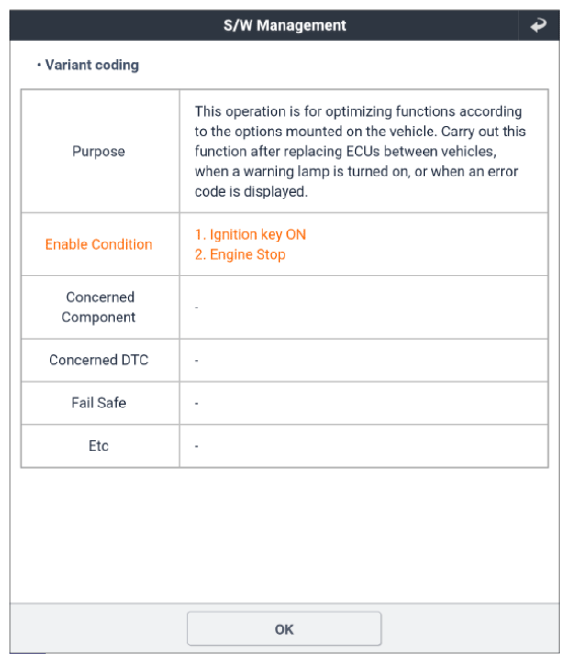

G13810580Courtesy of KIA MOTORS AMERICA, INC.

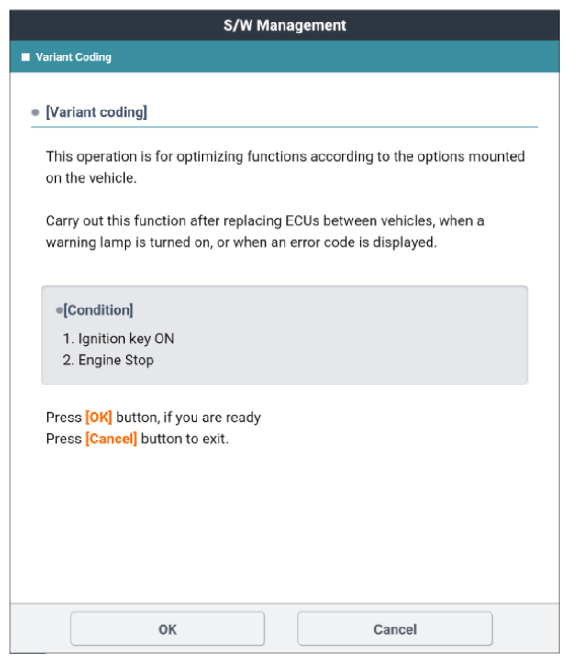

G13810581Courtesy of KIA MOTORS AMERICA, INC.

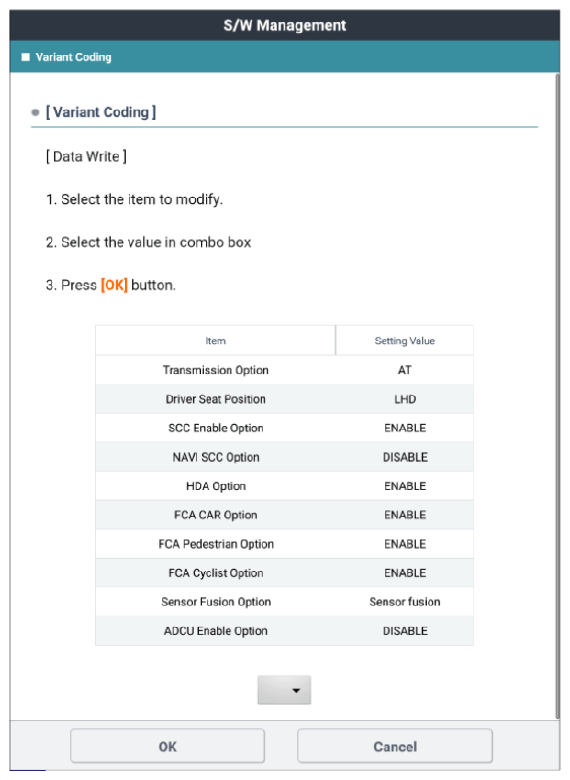

G13810582Courtesy of KIA MOTORS AMERICA, INC.

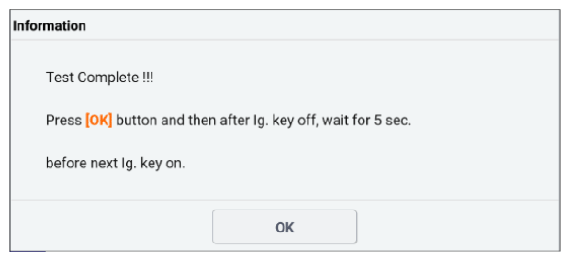

G13810583Courtesy of KIA MOTORS AMERICA, INC.

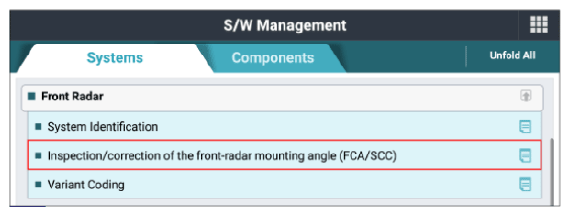

G13810584Courtesy of KIA MOTORS AMERICA, INC.

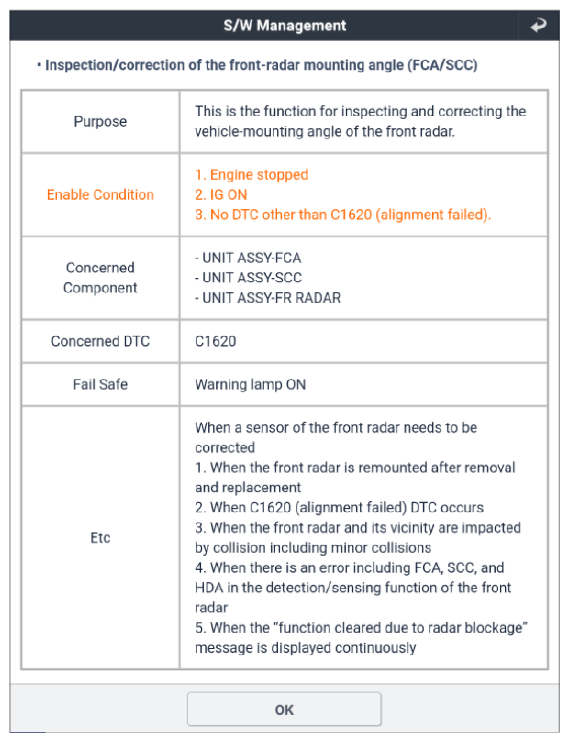

G13810585Courtesy of KIA MOTORS AMERICA, INC.

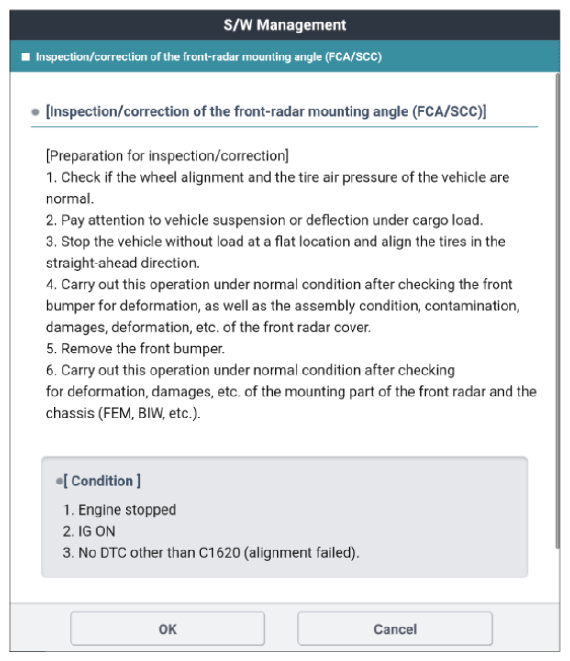

G13810586Courtesy of KIA MOTORS AMERICA, INC.

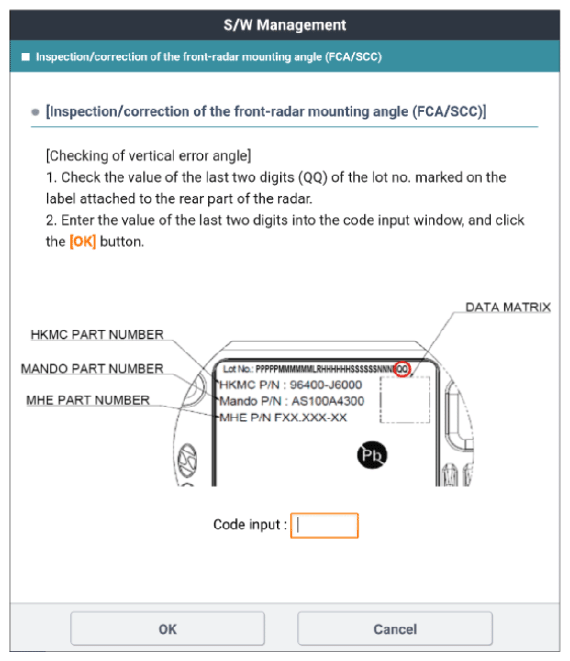

G13810587Courtesy of KIA MOTORS AMERICA, INC.

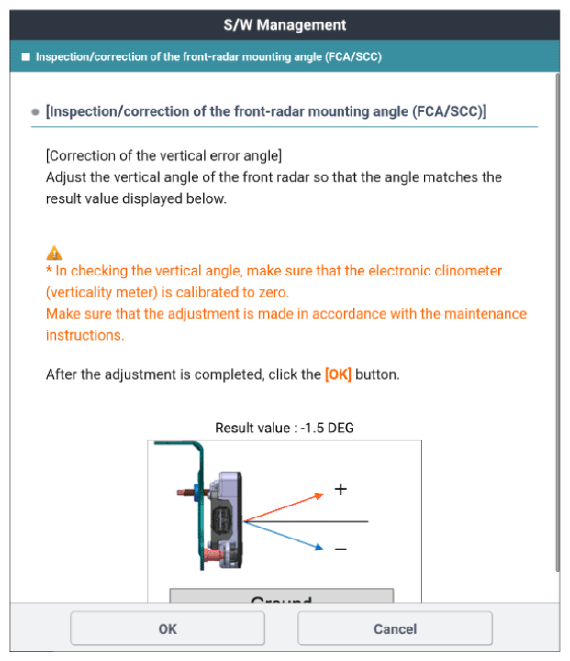

G13810588Courtesy of KIA MOTORS AMERICA, INC.

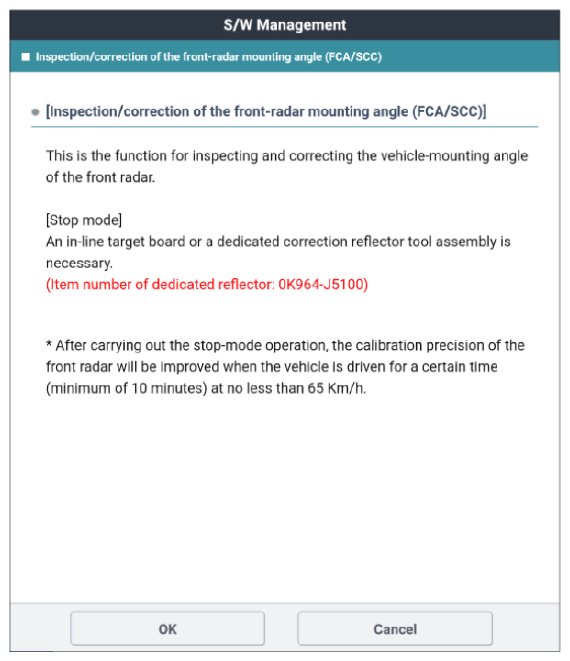

G13810589Courtesy of KIA MOTORS AMERICA, INC.

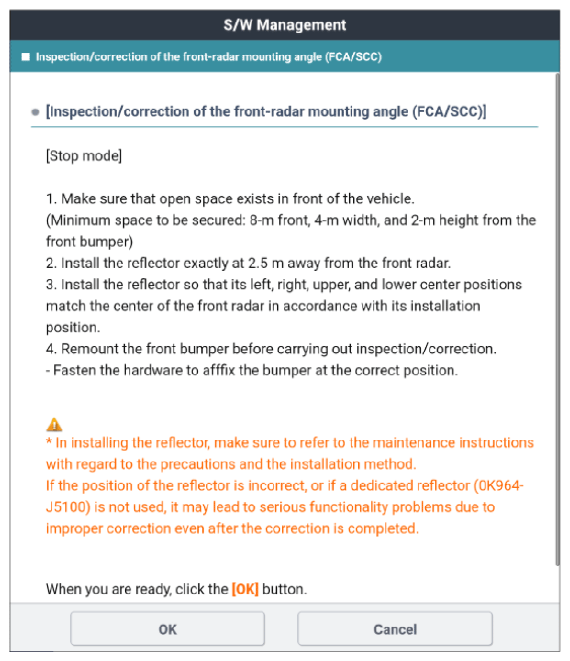

G13810590Courtesy of KIA MOTORS AMERICA, INC.

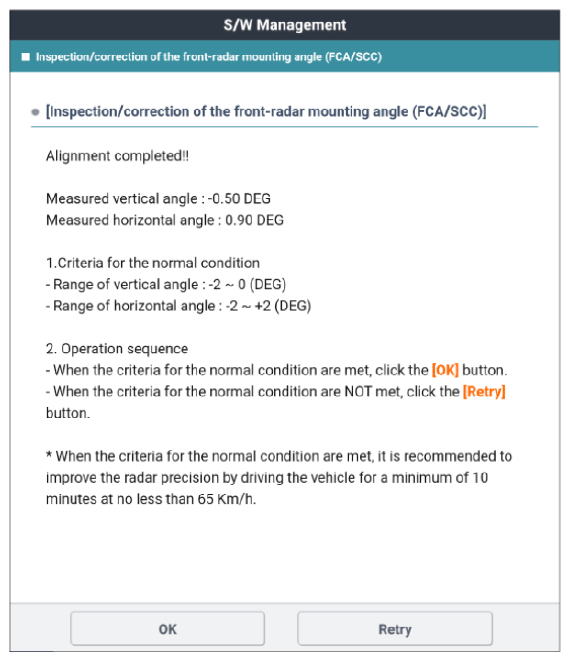

G13810591Courtesy of KIA MOTORS AMERICA, INC.
