Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

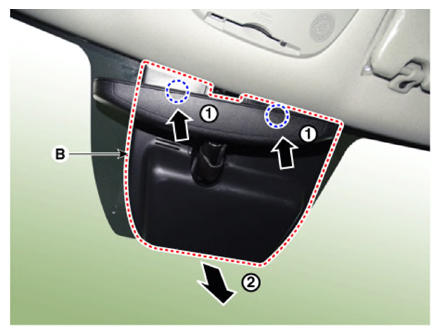

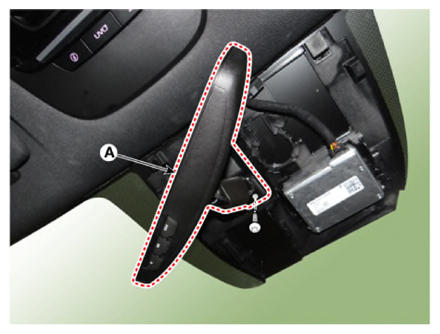

Remove the multifunction sensor cover (A), (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

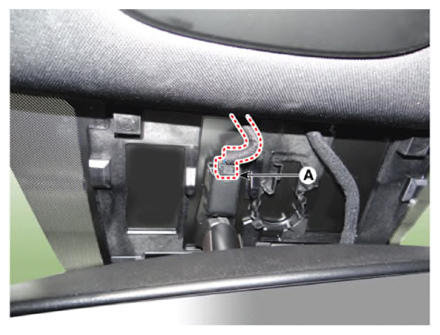

Disconnect the ECM mirror connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

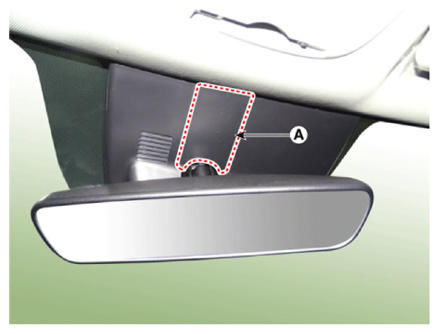

Loosen the mounted screws and push the ECM mirror base upward to remove the ECM mirror assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Be careful not to damage the windshield glass.
