Multi Fuse

  1. Disconnect the negative (-) battery terminal.

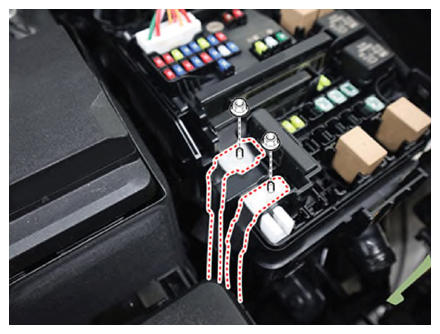

  2. Remove the power cable terminals (A) after loosening the nuts.
    G14563803Courtesy of KIA MOTORS AMERICA, INC.

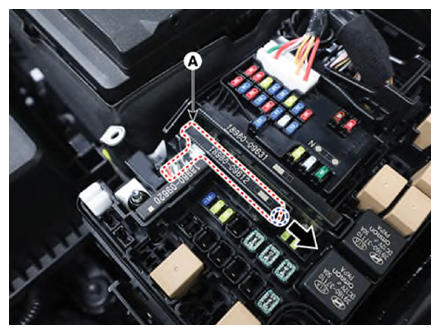

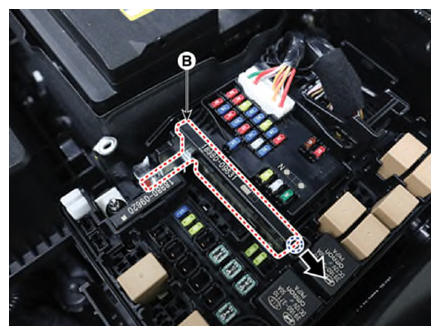

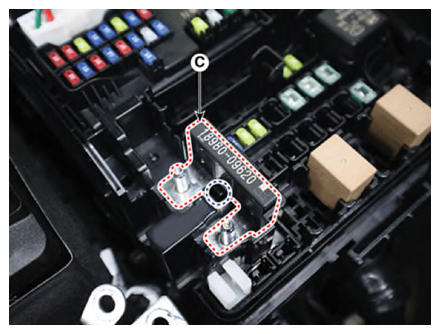

  3. Remove the multi fuse (A), (B) and then remove multi fuse (C).
    G14563804Courtesy of KIA MOTORS AMERICA, INC.
    G14563805Courtesy of KIA MOTORS AMERICA, INC.
    G14563806Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the multi fuses for any damage.

    Information

    • The entire multi fuse has to be replaced even if only one fuse is damaged.
    • Use the multi fuse of the exact fuse capacity.
