Repair Procedures: Removal: 4DR

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear package tray trim.

    (Refer to Body - "REAR PACKAGE TRAY TRIM ")

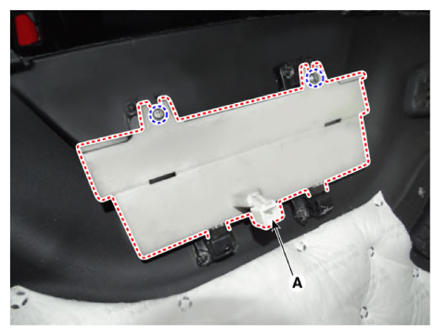

  3. Remove the high mounted stop lamp (A) after loosening the screws.
    G14564009Courtesy of KIA MOTORS AMERICA, INC.
