Moisture Absorbent

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

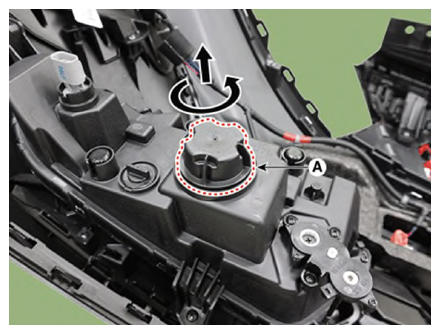

  1. Remove the dust cap (A) by rotating in the counterclockwise
    G14564000Courtesy of KIA MOTORS AMERICA, INC.

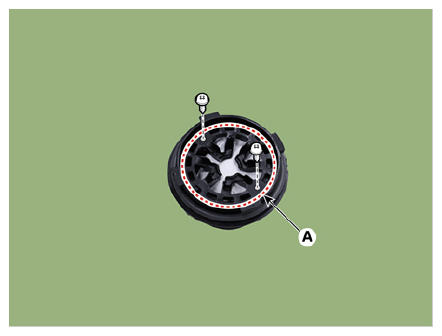

  2. Remove the moisture absorbent bracket(A) from the dust cover after removing the mounting screws.
    G14564001Courtesy of KIA MOTORS AMERICA, INC.

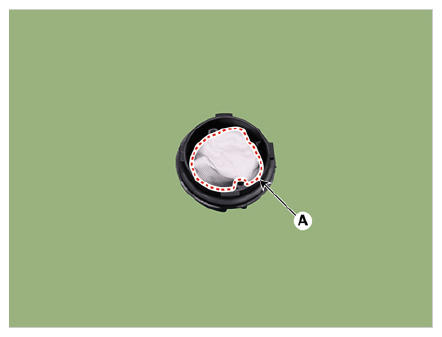

  3. Remove the moisture absorbent (A) from the dust cap.
    G14564002Courtesy of KIA MOTORS AMERICA, INC.

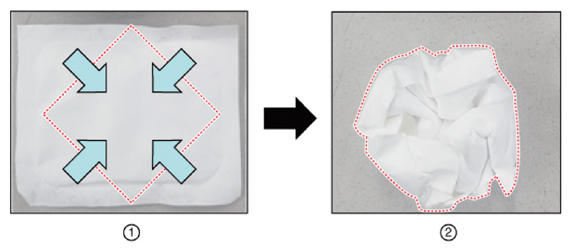

  4. Fold an new absorbent material as the picture below.
    G14564003Courtesy of KIA MOTORS AMERICA, INC.
