Removal And Installation

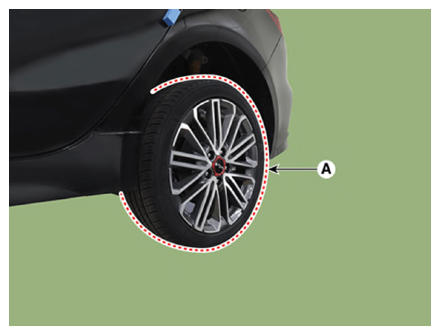

Remove the rear wheel and tire (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage to the hub bolts when removing the rear wheel and tire.

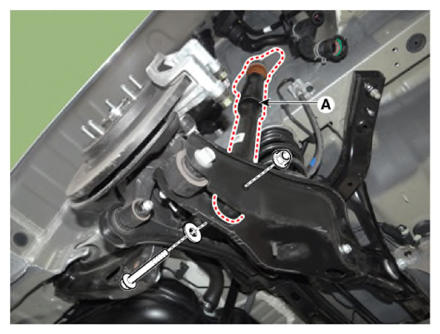

Separate the rear shock absorber (A) from the rear carrier by loosening the lower mounting bolt and nut.
Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

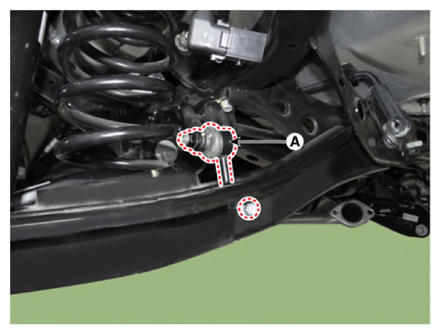

Separate the rear stabilizer link (A) by loosening the nut.
Tightening torque:

58.8 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When loosening the nut, fix the outer hexagon of stabilizer bar link.

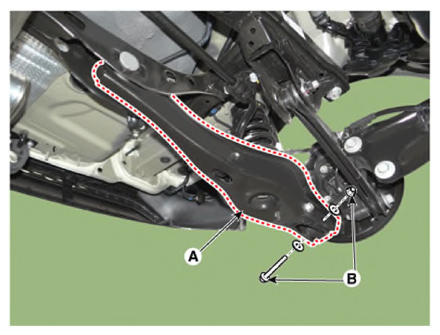

Separate the lower arm (A) by loosening the bolts and nuts (B).
Tightening torque:

Bolt and nut (B): 137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Set up the jack under the lower arm in order to remove it in no-load condition.

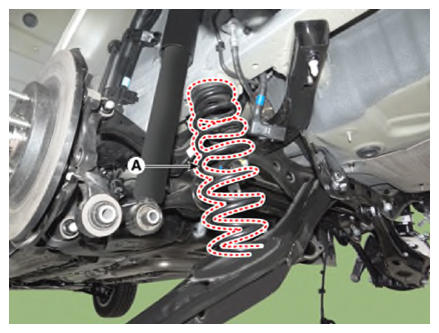

Remove the rear coil spring (A).

Courtesy of KIA MOTORS AMERICA, INC.

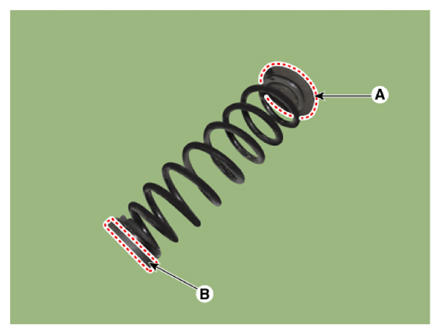

Remove the spring upper pad (A) and lower pad (B).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Check the wheel alignment.
(Refer to Rear Suspension System - "REAR ALIGNMENT ")
