Toe Adjustment
| Toe-in | Total | 0.2° ± 0.2° |
| Toe-in | Individual | 0.1° ±0.1° |

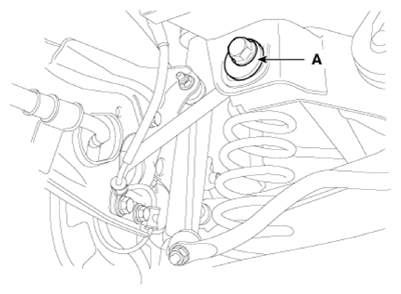

- Adjust rear toe by turning the rear assist arm cam bolt (A) clockwise or counter clockwise. Toe adjustment should be made by turning the right and left cam bolt by the same amount.
- When completing the toe adjustment, tighten the nut to specified torque.
Tightening torque:
107.9 - 117.7 N.m (11.0 - 12.0 kgf.m, 79.6 - 86.8 lb-ft)
