- Install the concentric slave cylinder bolts (3-ea). Not to be bent or twisted, Tighten them in diagonal directions.
- When it is assembled, it must be free from invasive foreign matters and oil leakage.
- Do not allow grease or oil to contaminate bearing and operating parts of concentric slave cylinder.
(Noise/wear due to abnormal slip during operation)

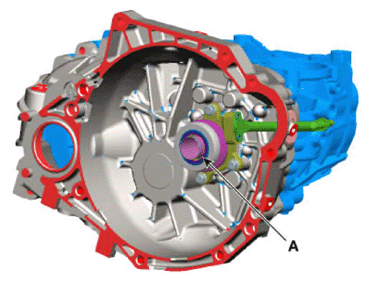

- Install the concentric slave cylinder (A).
Tightening torque:
19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb.ft)
- Install the manual transaxle assembly.
G 1.6 T-GDI GAMMA (Refer to Manual Transaxle System - "MANUAL TRANSAXLE ")
- Perform bleeding air procedure in concentric slave cylinder after pouring the brake fluid.
G 1.6 T-GDI GAMMA (Refer to Concentric Slave Cylinder Assembly - "ADJUSTMENT ")
