Component Inspection: Notes
| Purge Control Valve | ||
|---|---|---|
| Inspection Condition | Inspection Procedure | Reference |
|
|

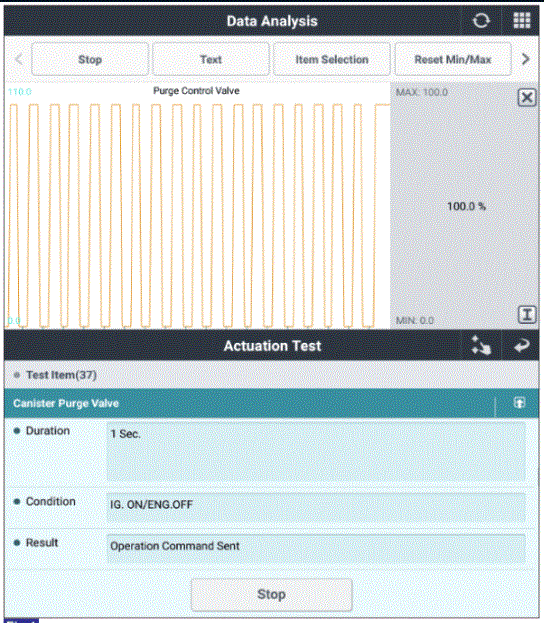

Fig.1 |
Good
Go to "Canister Closve Valve Inspection" procedure.
No Good
If no problems were found with the circuits of connectors, replace the PCSV and go to "Verification of Repair
| Canister Close Valve Inspection | ||
|---|---|---|
| Inspection Condition | Inspection Procedure | Reference |
|
1. Connect KDS to Data Link Connector (DLC) 2. Perform "Actuation Test" of concerned component with KDS |
Fig. 1 to 2 |

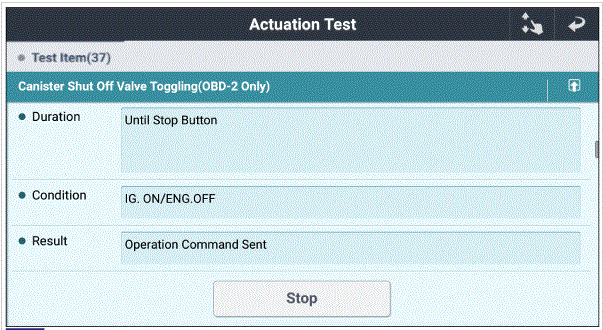

Fig. 1) "Cannister Shut Off Valve Toggling" Actuation Test

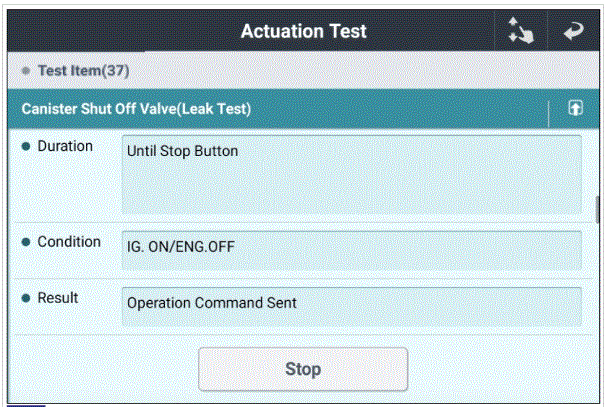

Fig. 2) "Canister Shut Off Valve (Leak Test) Actuation Test
Good
- Go to "Visual Inspection "
No Good
- If no problems were found with the circuits or connectors, replace the CCV and go to "VERIFICATION OF REPAIR " procedure.
