Component Inspection
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

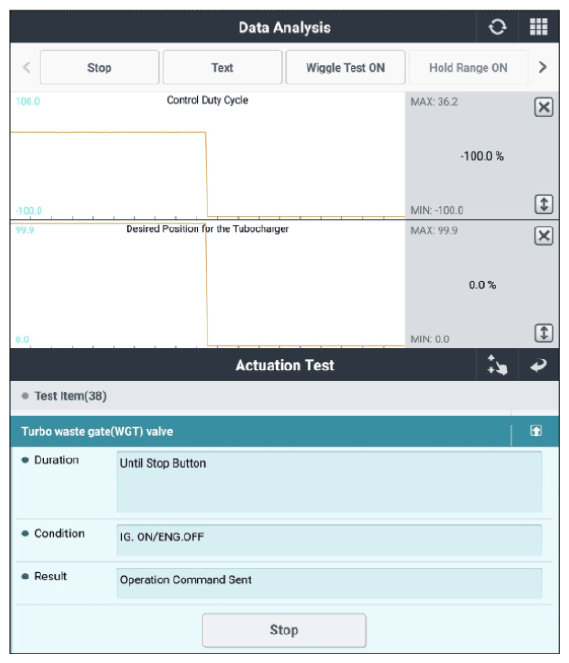

Fig.1 |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "EWGA Resistance Check" procedure.
| EWGA Resistance Check | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
EWGA (component side) | 1 (motor +) | EWGA (component side) | 3 (motor -) | Approx. 1.4 to 2.0Ω |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the EWGA and Go to "VERIFICATION OF REPAIR " procedure.
