Tailgate Antenna

  1. Disconnect the negative battery terminal.
  2. Remove the rear transverse trim.

    (Refer to Body - "REAR TRANSVERSE TRIM ")

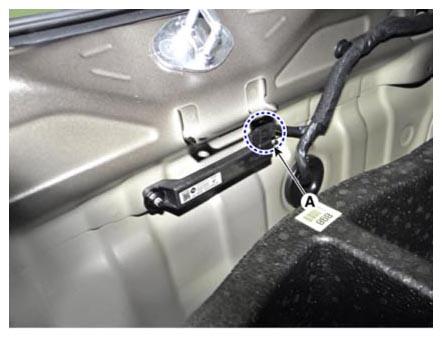

  3. Disconnect the tailgate antenna connector (A).
    G14557047Courtesy of KIA MOTORS AMERICA, INC.

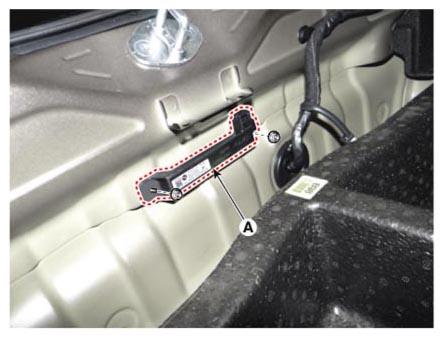

  4. Remove the tailgate antenna (A) after loosening the mounting nuts.
    G14557048Courtesy of KIA MOTORS AMERICA, INC.
