Circuit Diagram

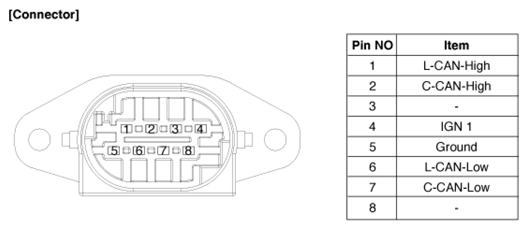

Fig 1: Front Radar Unit Connector End View And Terminal Description

G14557751

Courtesy of KIA MOTORS AMERICA, INC.
