Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

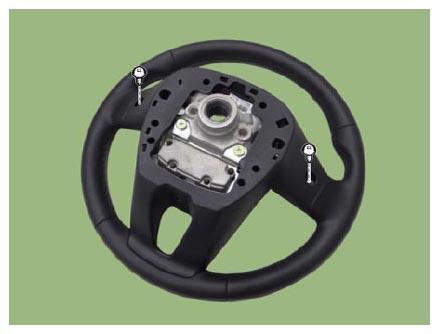

  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

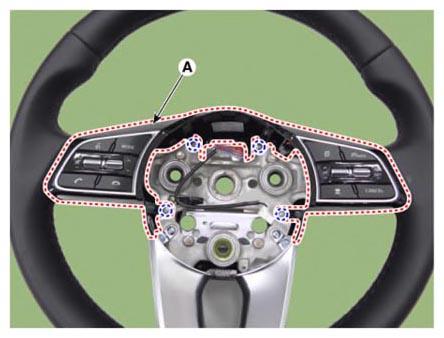

  3. Remove the steering wheel bezel assembly (A) after loosening the mounting screws.
    G14557847Courtesy of KIA MOTORS AMERICA, INC.
    G14557848Courtesy of KIA MOTORS AMERICA, INC.

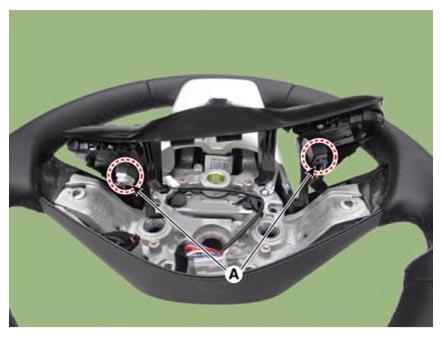

  4. Disconnect the connector (A) from steering wheel remote control.
    G14557849Courtesy of KIA MOTORS AMERICA, INC.

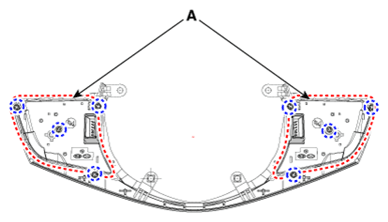

  5. Remove the steering wheel remote control (A) from bezel after loosening the screws.
    G14557850Courtesy of KIA MOTORS AMERICA, INC.
