Tailgate Lock Module 5DR

  1. Remove the tailgate lid trim.

    (Refer to Tailgate - "TAILGATE TRIM ")

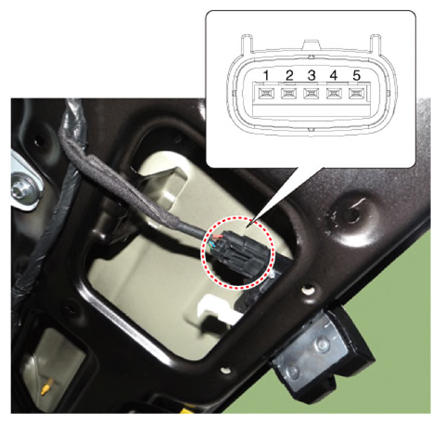

  2. Disconnect the connector from the tailgate lid latch.
    G14563896Courtesy of KIA MOTORS AMERICA, INC.

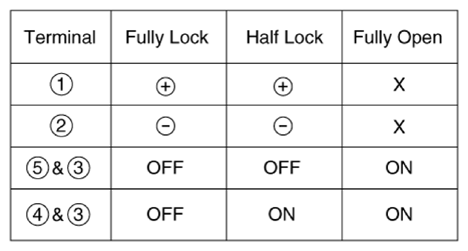

  3. Check actuator operation by connecting power and ground as shown in the illustration below. To prevent damage to the actuator, apply battery voltage only momentarily.
    G14563897Courtesy of KIA MOTORS AMERICA, INC.
