Components And Components Location: Components

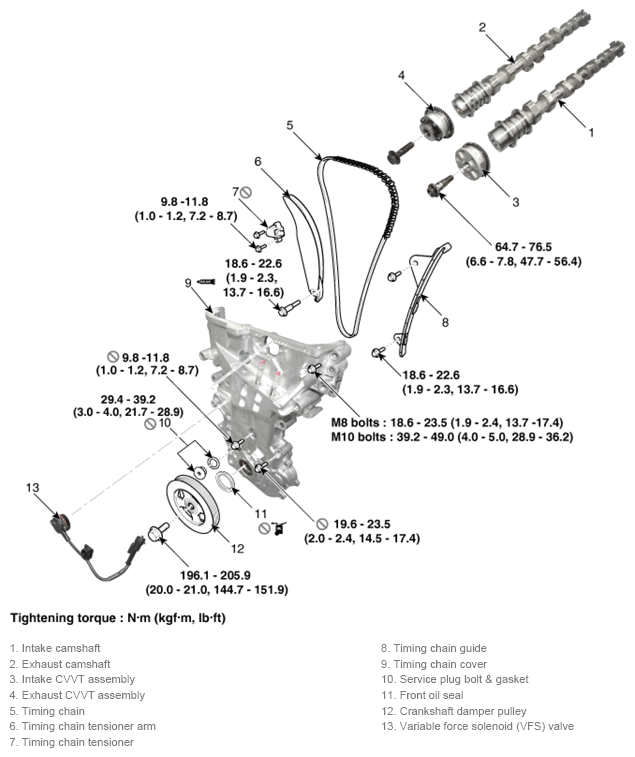

Fig 1: Timing System Components Location With Torque Specification

G14562658

Courtesy of KIA MOTORS AMERICA, INC.
