Driver Airbag (DAB) module

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to Battery Control System - " AUXILIARY 12 V BATTERY 2WD  ")

    (Refer to Battery Control System - " AUXILIARY 12 V BATTERY 4WD  ")

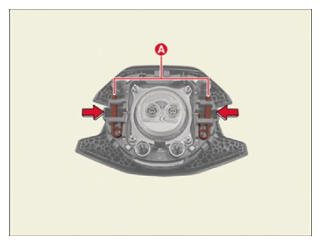

  2. Remove the driver airbag module by pressing the fastening pin using the service hole (A) on the back of the steering wheel.
    G15811319Courtesy of KIA MOTORS AMERICA, INC.

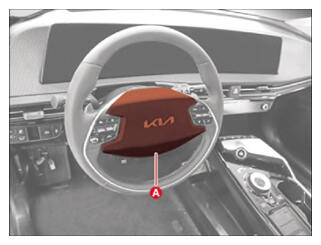

  3. Remove the Driver Airbag (DAB) module (A).
    G15811320Courtesy of KIA MOTORS AMERICA, INC.

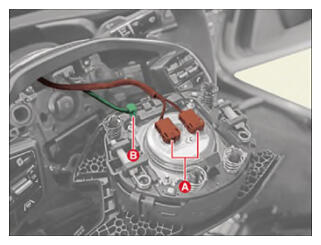

  4. Disconnect the airbag module connector (A) and horn connector (B).
G15811321Courtesy of KIA MOTORS AMERICA, INC.
