Removal And Installation: Removal

  1. Remove the console upper cover assembly.

    (Refer to Body - " CONSOLE UPPER COVER  ")

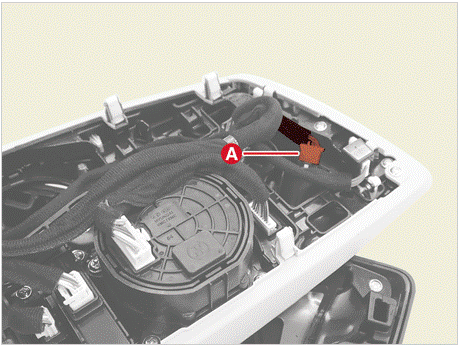

  2. Disconnect the start/stop button (SSB) connector (A).
    G15812498Courtesy of KIA MOTORS AMERICA, INC.

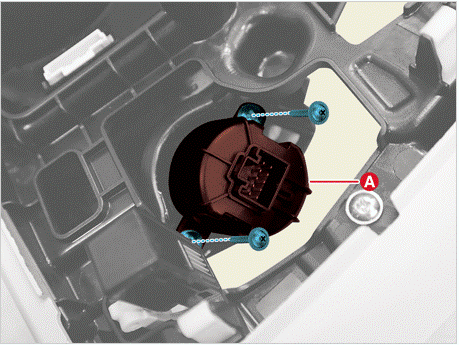

  3. Remove the SSB (A) after removing the screws.
G15812499Courtesy of KIA MOTORS AMERICA, INC.
G15812500Courtesy of KIA MOTORS AMERICA, INC.
