Home >> Kia >> 2023 >> EV6 GT-Line, RWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Removal And Installation >> Removal >> Buzzer

Removal And Installation: Removal: Buzzer

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

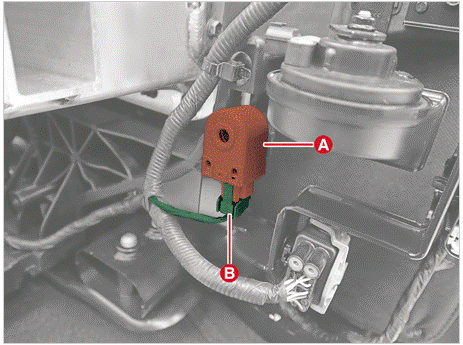

  2. Remove the buzzer (A) after disconnecting the buzzer connector (B).
G15812774Courtesy of KIA MOTORS AMERICA, INC.
