Removal And Installation: Removal

Align the steering wheel straight.
Disconnect the battery negative (-) terminal and the high voltage service interlock connector.
(Refer to Battery Control System - " AUXILIARY BATTERY (12 V) ")
Secure the steering wheel to prevent movement.
Remove the Driver Airbag (DAB) Module and clock spring.
(Refer to Restraint - " DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

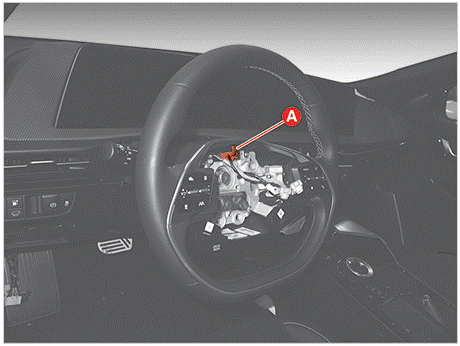

Disconnect the steering wheel connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

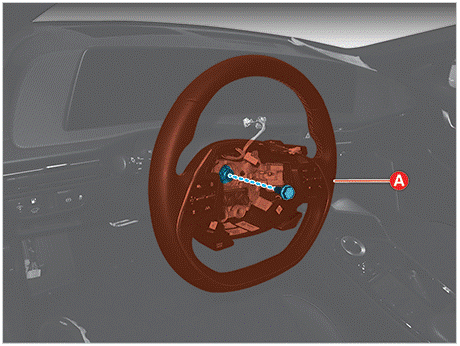

Remove the steering wheel (A) after removing the bolt.
Tightening torque:

39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Do not use a hammer when removing steering wheel, the steering column may be damaged if using a hammer.
Do not reuse the steering wheel bolt.
