Removal & Installation: Installation
- Install in the reverse order of removal.
NOTE:
(When replacing ignition coil and spark plug together, cleaning is not required.)
- Install the ignition coil with the specified torque.
- If ignition coil is dropped, it may cause internal damage. Do not use it.

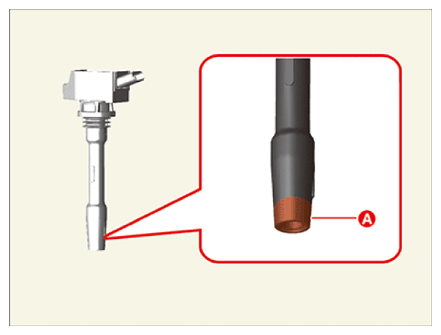

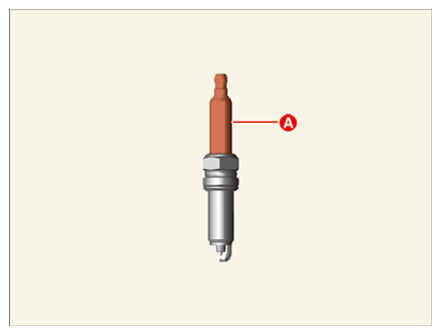

- When assembling the parts, clean the contaminated area (A).
- The cloth should be clean, free of contaminants, and soft enough to not damage the parts.
(When replacing ignition coil and spark plug together, cleaning is not required.)
