High Pressure Fuel Line
High Pressure Fuel Line

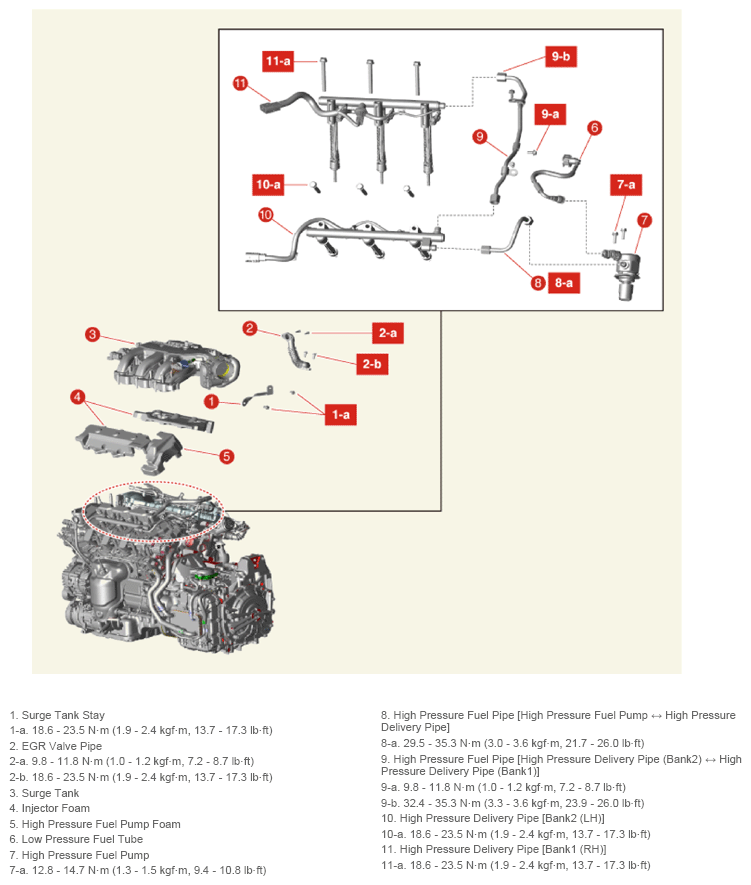

Fig 1: High Pressure Fuel Line Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
