Smart Key Status Check

  1. Connect the VCI II of KDS to the Data Link Connector (DLC).
  2. After IG ON, select the "SMK STATUS INFO".

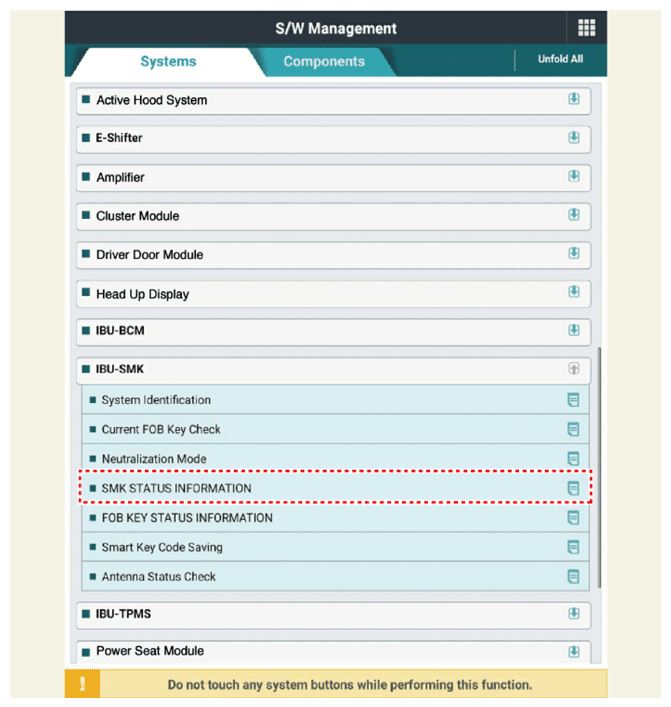

    G14806643Courtesy of KIA MOTORS AMERICA, INC.

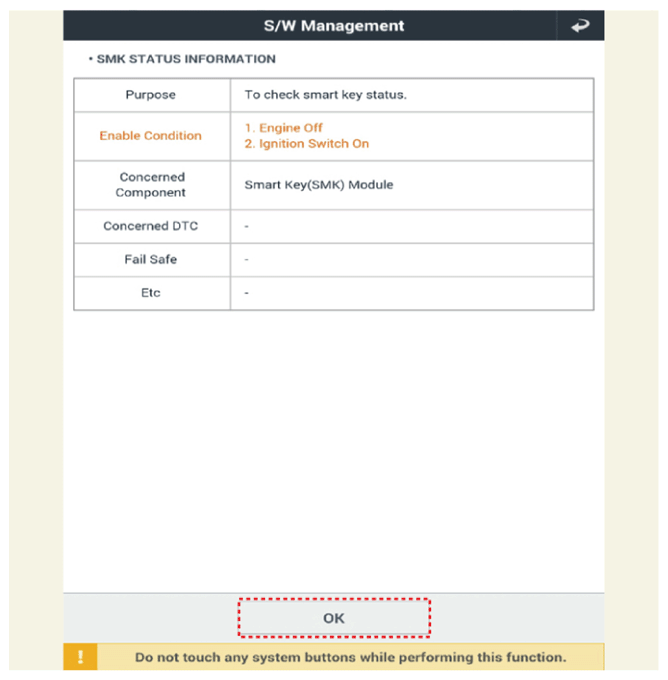

    G14806644Courtesy of KIA MOTORS AMERICA, INC.

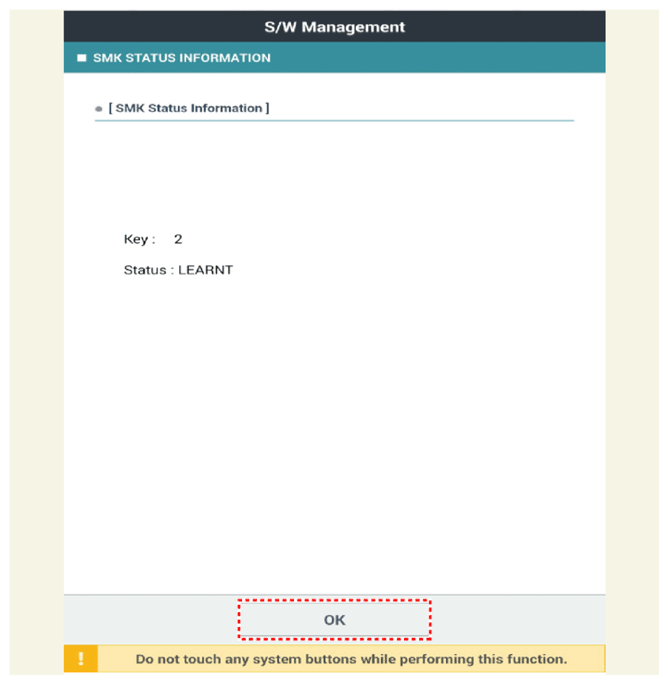

    G14806645Courtesy of KIA MOTORS AMERICA, INC.
