Smart Key Status Check
Smart Key Status Check
Connect the VCI II of KDS to the Data Link Connector (DLC).

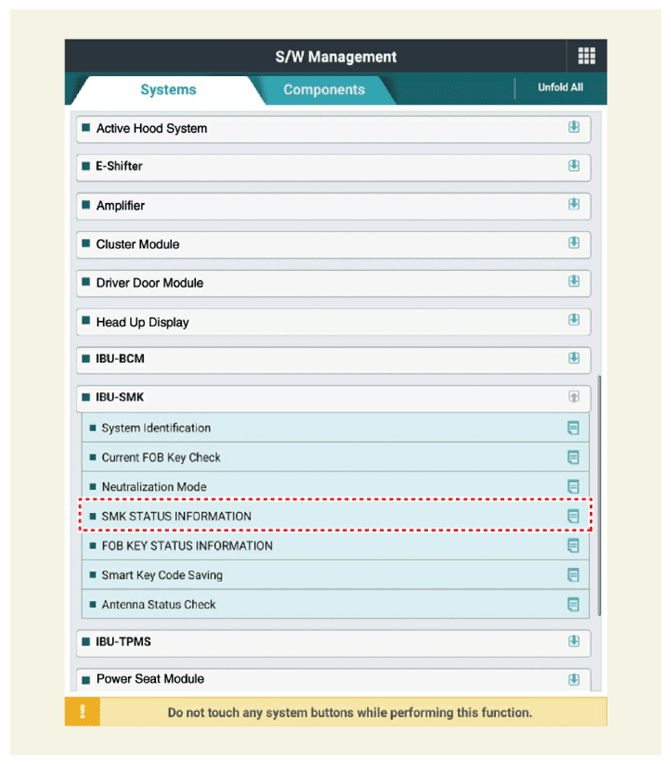

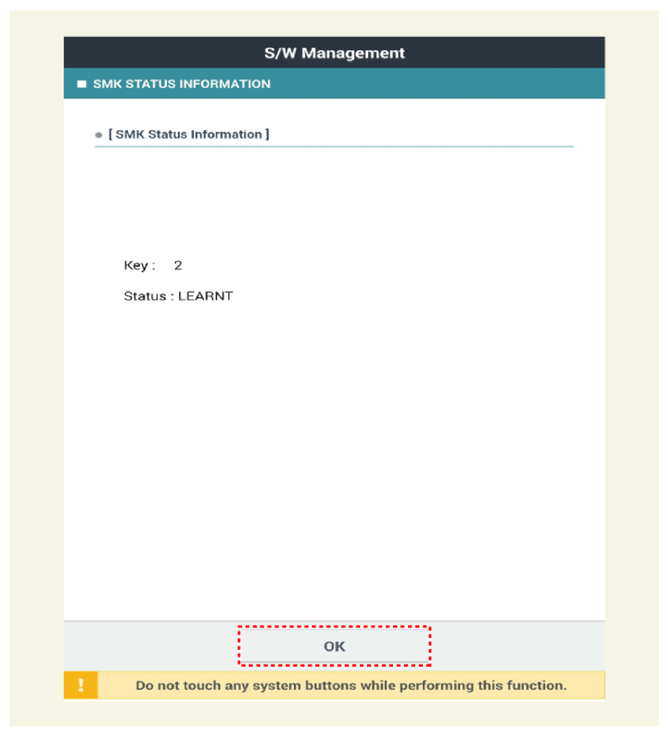

After IG ON, select the "SMK STATUS INFO".
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
