Disassembly & Reassembly: Disassembly

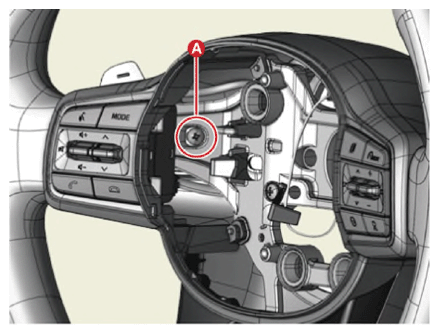

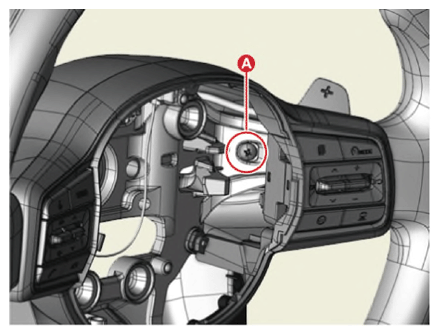

1. Remove the paddle shift switch mounting screws (A).

   [LH]

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

   Courtesy of KIA MOTORS AMERICA, INC.

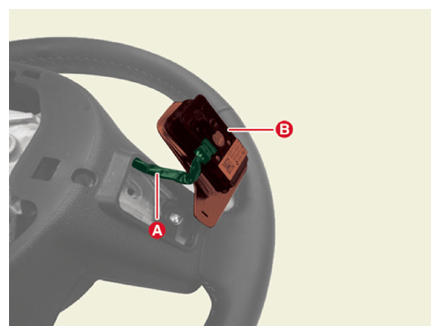

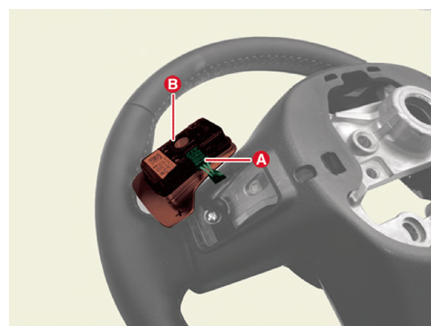

2. Disconnect the paddle shift connector (A), then remove the paddle shift (B).

   [LH]

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

   Courtesy of KIA MOTORS AMERICA, INC.

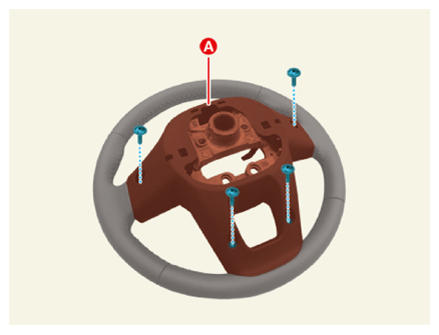

3. Remove the screws, then remove the steering wheel under cover (A).

   Courtesy of KIA MOTORS AMERICA, INC.

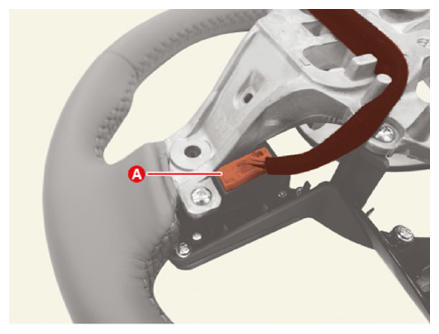

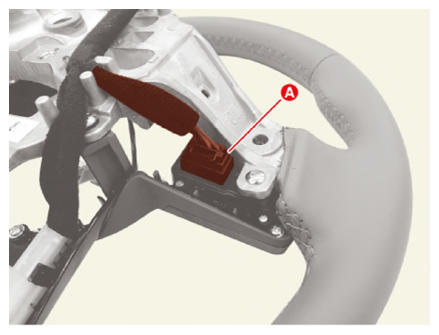

4. Remove the remote control switch connector (A).

   [LH]

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

   Courtesy of KIA MOTORS AMERICA, INC.

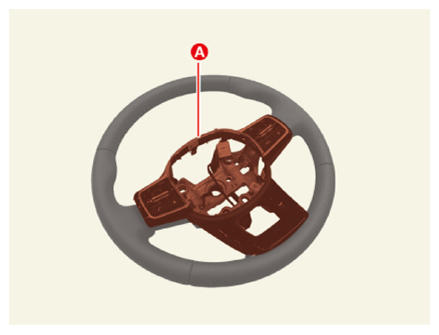

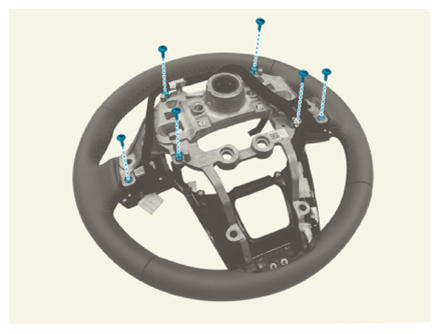

5. Remove the screws, then remove the steering wheel bezel (A).

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

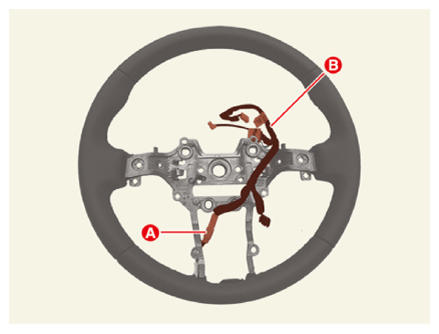

6. Remove the connector (A), then remove the steering wheel extension wire (B).

Courtesy of KIA MOTORS AMERICA, INC.
