Rail Pressure Sensor (RPS)
>>
Components & Components Location
>>
Components Location
Components Location

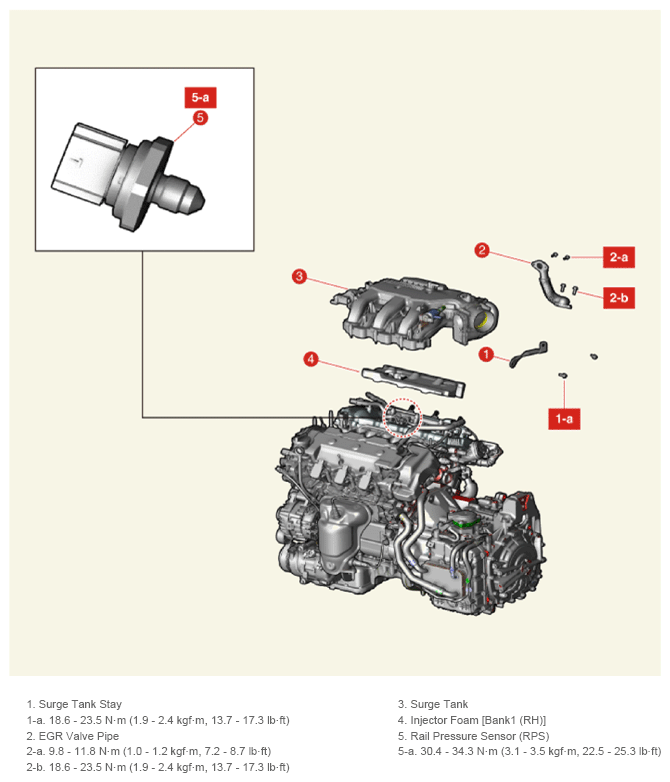

Fig 1: Rail Pressure Sensor Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
